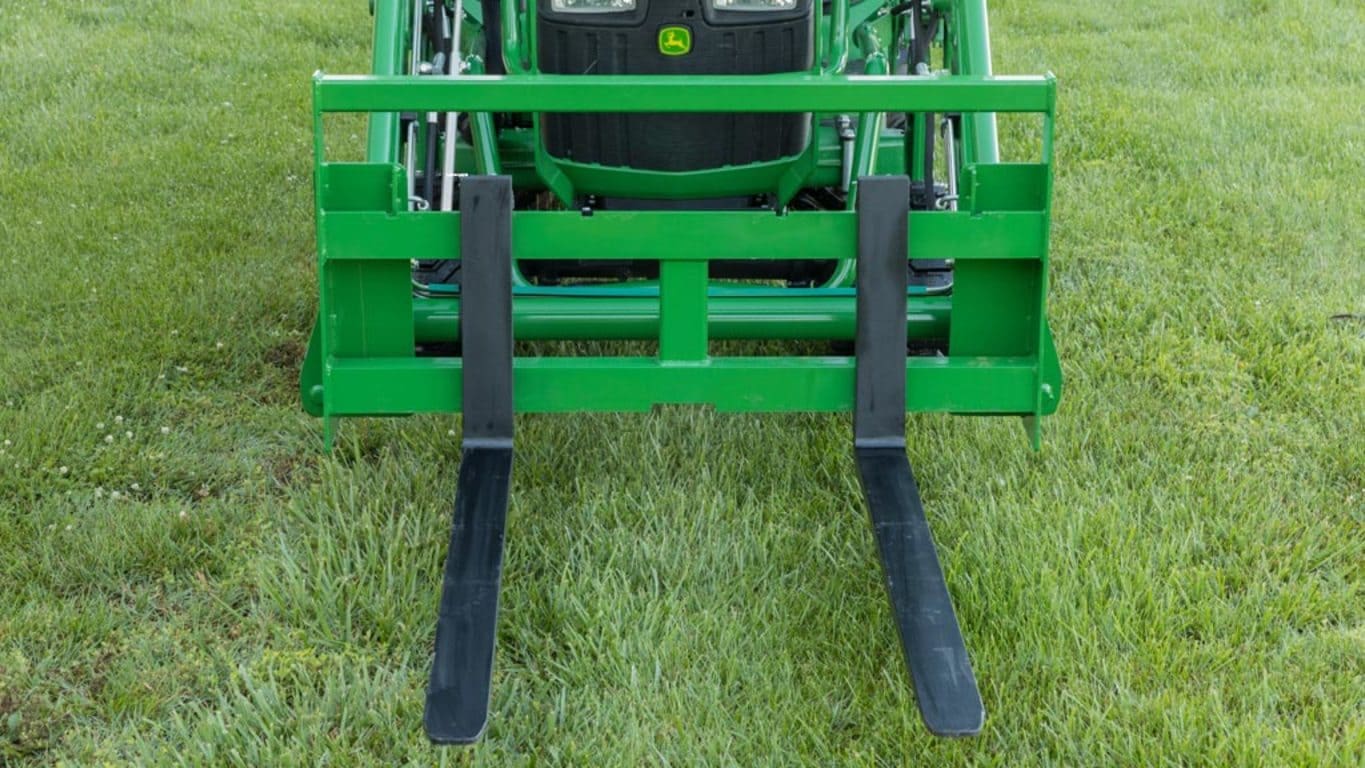

AP10F Pallet Forks
Key Features
- High tensile, heavy-gauge steel frame
- Tines float while picking up and removing pallets on uneven terrain
- Tines can be made rigid at any position using set screws
- See brochure for loader series compatibility
0% for 84 Month Financing on Select Compact Tractors Shop Now
AP10F Pallet Forks
AP10F Pallet Forks
Features
Specifications
Increased uptime with Quick-Change capability
Locking the attachment in place
Hook up the pallet fork by lining up the loader’s connecting point to the attachment frame, picking up the attachment, and locking it in place.
Multiple tine lengths satisfy producers’ needs
Tine lengths
Choose between two tine lengths – 91.4 cm (36 in.) or 106.7 cm (42 in.) – to best match the type of work the producer wants to complete with the attachment.
Adjustable tine positioning provides increased uptime
Tine positions
Easily move tine forks to three desired locations for picking up a variety of pallet sizes.
| Overall height | 62.2 cm 24.5 in. |
|||
|---|---|---|---|---|
| Overall width | 125.1 cm 49.25 in. |
|||
| Overall length | Length with 91.4-cm (36-in.) tines – 114.3 cm 45 in. Length with 106.7-cm (42-in.) tines – 129.5 cm 51 in. |
| Current series style | 100, 200 |
|---|
| Operational | With 36-inch tines: 77.1 kg 170 lb With 42-inch tines: 89.8 kg 198 lb |
|||
|---|---|---|---|---|
| Shipping | With 36-inch tines: 97.1 kg 214 lb With 42-inch tines: 109.8 kg 242 lb |
| Type | Fixed | |||
|---|---|---|---|---|
| Capacity | Capacity with 91.4-cm (36-in.) tines – 567 kg 1250 lb Capacity with 106.7-cm (42-in.) tines – 567 kg |
|||
| Section | Section with 91.4-cm (36-in.) tines – 25.4 x 76.6 mm 1.0 x 3.0 in. Section with 106.7-cm (42-in.) tines – 30 x 80 mm 1.18 x 3.13 in. |
|||
| Length | 91.4 and 106.7 cm 36 and 42 in. |
| Labor hours | 0.25 |
|---|
| Time period | 1 year |
|---|
| Date collected | 1-August-2017 |
|---|
