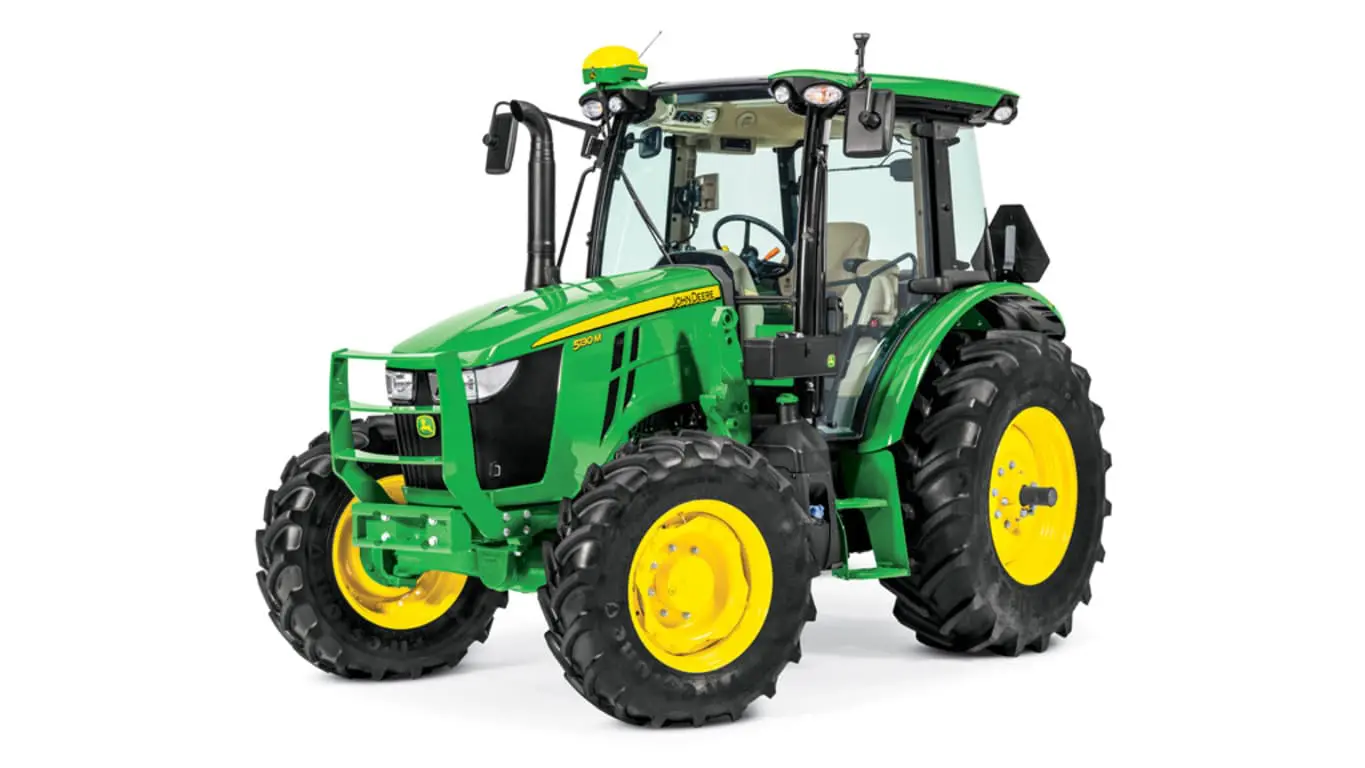

5130M Utility Tractor
Key Features
- PowrQuad™ PLUS or Powr8™ transmission options
- Choose climate-controlled cab or open station
- Hitch lift capacity starting at 6,975 lb (3,164 kg) and optional up to 7,868 lb (3,569 kg)
0% for 84 Month Financing on Select Compact Tractors Shop Now
5130M Utility Tractor
5130M Utility Tractor
Features
Specifications
Brochure
Adjust to job with flexible wheel spacing
Additional flexibility with bar axle on 5M adds to rear axle offerings
Overview
Whether fitting down a row spacing, straddling a windrow, or a wide stance for stability mowing on hills – there is a 5M configuration to meet operator’s needs. The rack-and-pinion (better known as ‘bar’) axle joins the existing flange axle offerings of the 5M adding nearly 25.4 cm (10 in.) of tread width on rear axles and brings additional options such as cast wheels that unlock the compatibility for duals. This increased flexibility all comes in the same versatile 5M tractor.
Bar axle shown with steel wheelt
Flange axle with steel wheel
Consult the operator’s manual for specific wheel spacing configurations by tire offering.
Benefits
- 134.874 cm (53.1 in.) to 205.486 cm (80.9 in.) wheel tread range on flange axle configurations
- Up to 228.6 cm (90 in.) wheel tread range on bar axle configuration
- Find the fit with fixed flange axle or fine-tune with adjustable bar axle offerings
- Increased ballast options with cast wheel offerings for bar axles
- Increase flotation with duals compatible with cast wheels on bar axles
Both the bar and flange axles are proven designs used on tractors for years, but this is the first time that bar axles have been brought to the 5-Series lineup.
Premium cab for the ultimate operating experience
5M Tractor Premium Cab with panorama roof
Overview
Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.
Benefits
- Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
- Additional storage space with the rear floor mat behind the seat
- Excellent visibility to rear operations with the rearview mirror
- Shield the operator from the sun with an easy-to-use front sunshade
Features |
Standard Cab |
Premium Panorama Roof Cab |
Deluxe isolated cab with flat floor |
X |
X |
Tilt and telescopic steering column |
X |
X |
Convenience power outlet |
X |
X |
Air conditioning and heater |
X |
X |
Speedometer |
X |
X |
Beverage Holder |
X |
X |
Sun visor for front window |
X |
X |
Two-speed front windshield wiper and washer |
X |
X |
Two front/two rear roof-mounted worklights |
X |
X |
Two front/two rear roof-mounted warning lights |
X |
X |
Two fender-mounted taillights |
X |
X |
120Amp Alternator |
X |
X |
Convenience power outlet |
X |
X |
Monitor mounting bosses (two Sets) |
X |
X |
Swing-out rear window with two removable rear plugs for monitor |
X |
X |
Right-hand console light |
X |
X |
Radio preparation (with speakers, wiring) |
X |
X |
Rear window grab handle |
X |
X |
Bluetooth® ready |
X |
X |
Requires option code 3025 (Deluxe cornerpost exhaust). |
X |
X |
Fixed panorama roof with shade |
– |
X |
Radio (Bluetooth® Capable) |
– |
X |
Rear window wiper |
Option |
X |
Radio antenna |
– |
X |
Requires option code 4030 (ElectroHydraulic (EH) rear hitch) |
– |
X |
Requires option code 6040 (MFWD) |
– |
X |
Bluetooth is a trademark of Bluetooth SIG, Inc.
Heavy-duty 3-point hitch lift capacity for implement versatility
5M Tractor 3-point hitch
Overview
Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
Benefits
- Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
- Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls – each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
- Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
- Convenience when leveling implements with right lift link being able to adjust without tools – lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour
Additional details
Mechanical or electrohydraulic hitch control operation
Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.
The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.
The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.
Optional larger cylinders:
Transmission |
Cylinder diameter |
Lift capacity at 610-mm (24-in) behind lift point |
PowrReverser™ transmission models |
Two 65-mm (2.56-in.) cylinders |
See specifications for lift capacity. |
PowrReverser models with optional high-capacity hitch |
One 65-mm (2.56-in.) cylinder |
|
PowrQuad PLUS or Powr8 transmission models |
Two 75-mm (2.95-in.) cylinders |
|
PowrQuad PLUS or Powr8 models with optional high-capacity hitch |
Two 80-mm (3.15-in.) cylinders |
Rear fender hitch controls
5M rear fender hitch controls
Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.
Rear quick hitch
Rear quick hitch
Sideview of quick hitch shown on 5M
An updated three-point quick hitch is offered on the 5M Tractors.
- This updated design is a break from the existing welded quick hitch as the frame is cast.
- The curved design eliminates the potential for contact with the rear fender and extensions.
- The quick hitch is available as a field kit option.
Sway bars
5M Tractor sway bars
Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.
Focus on the job while AutoTrac™ guidance keeps on track
Mowing with AutoTrac™
Spraying with AutoTrac™ Basic
Manage in-field efficiency and reduce operator fatigue by engaging AutoTrac on your 5M or 5ML tractor. AutoTrac provides operators with a hands-free guidance solution with accuracy on a variety of field conditions. Reduce operator fatigue without the need for an additional display with AutoTrac Basic which provides straight line AutoTrac guidance in the digital dash display.
Enable the following benefits by equipping your tractor with AutoTrac, a GreenStar™ Display and a StarFire™ receiver:
- Simple and user friendly
- Reduces operator fatigue and error
- Saves time by eliminating implement overlap
- Optimizes machine efficiency
- Increase data driven decisions by documenting jobs
Potential jobs to use with AutoTrac:
- Cutting hay
- Over seeding
- Cultivation
- Disking
- Spraying
- Mowing
- Planting
- Fertilizer applications
- Pulling in irrigation pipe
- Cutting ditches
- Transplanting
- Harvesting
Learn more about the benefits of 4240 universal display and Gen5 universal display.
Learn more about the benefits of a StarFire 6000 receiver and StarFire 7000 receiver.
Take charge with PowrQuad™ PLUS and Powr8™ transmissions
Integrated declutch and gear buttons on single transmission control lever
Overview
A more productive transmission in a mid-spec utility tractor is found with PowrQuad PLUS and Powr8 transmissions which builds on the clutch less hydraulic shifting between forward and reverse of the PowrReverser™ transmissions with simple push-button gear shifting.
Benefits
- Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
- Improved efficiencies by reducing steps to change gears by 35 percent
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Ideal for loader work and any applications that require frequent directional changes in tight spaces
- Eliminates wear on the clutch by automating gear shifts at the push of a button
Additional details
The PowrQuad™ transmission can be ordered with different options to meet customer needs:
|
PowrQuad™ PLUS 16F/16R |
Powr8™ 32F/16R |
Powr8™ 32F/16R with creeper |
5M Cab |
Option |
Option |
Option |
5ML Open Station |
Option on 5105ML and 5120ML Base on 5130ML |
Option on 5105ML and 5120ML Base on 5130ML |
Not Applicable |
5ML Cab |
Base |
Not Applicable |
Option |
PowrQuad/Powr8 transmissions include:
- Wet clutch
- Ergonomically mounted transmission lever controlling both gear and range changes
- Declutch button on the range lever for range shifting optionally without use of foot clutch
- Left-hand reverser for seamless directional changes
- Constant-mesh, helical-cut gears
- Pressure-lubricated top shaft
- Positive park pawl
- Three-speed PTO
- Neutral start switch
Integrated declutch button on transmission control lever
Integrated gear buttons on transmission control lever
Ranges on the transmission control can be selected by moving the controller in an H pattern. The lever selects ranges A, B, C, or D. Ranges are fully synchronized. That means when upshifting, operators can move between any range A-D without stopping the tractor.
Two buttons allow operators to gear up (rabbit) or gear down (turtle) within a range. A PowrQuad has 4 gear speeds per range while a Powr8 has 8 per forward range which is precisely how they got their names.
Power bulge and torque reserve pull through the tough spots
Power bulge and torque curve
Overview
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.
Benefits
- Increased productivity in demanding conditions with more power when operator need it
- More lugging ability for quicker power recovery
- Additional torque provides force to remain horsepower as engine rpm drops below rated speed
Additional Details
Horsepower and torque are mathematically related.
5M 4-Cylinder tractors provide 4% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5075M).
5M Power and Torque Curves
5M power curve summary
5M torque curve summary
EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency
5E 3-Cylinder Engine
Overview
The U.S. EPA and Environment Canada requires all off-road diesel engines with 18.6 kW (25 hp) or more to meet stringent FT4 emissions regulations.
5E 3-Cylinder models are equipped with powerful, reliable engine with no regen required while still meet the U.S. Environmental Protection Agency (EPA) Final Tier 4 (FT4) exhaust emissions regulations. The John Deere PowerTech™ 3029 EWR engine utilizes a diesel oxidation catalyst (DOC) and cooled exhaust gas recirculation (EGR) aftertreatment system – with no DEF fluid, no DPF, and no regen required, you can focus on completing your jobs while your tractor keeps providing the power you need.
- Provide excellent torque and fuel efficiency
- See over the hood with compact aftertreatment design
- Outstanding performance and durability
PowerTech EWL/EWR/EWX/PWL/PWS/PSS/PVS engine identification
NOTE: find a tractor’s 3 character engine identification by referencing the ‘engine description’ in specifications.
| EWL
 |
Aftertreatment
|
Turbocharger
|
|
Technology
|
Several defining features on 5 Series tractors maximize the performance and reliability of the emissions package. A completely shielded DOC/DPF not only protects essential components from damage, it also keeps out dirt and debris. The well-packaged and tightly organized circulation system means there is more room to work around the tractor.
Key components of the emissions system
Shielded for protection
Diesel oxidation catalyst (DOC), diesel particulate filter (DPF), and cooled exhaust gas recirculation (EGR) Deere has chosen to utilize an exhaust filter (DOC) and/or diesel particulate filter (DPF) to reduce particulate material so the engine can operate at a level which produces less nitrogen oxide (NOx). With less NOx created, it requires less DEF to treat or no DEF for 3-cylinder models. The result is improved total fluid economy (diesel and DEF). Some applications also reduce NOx using cooled exhaust gas recirculation (EGR) that allows a controlled amount of exhaust gas to be returned to the engine leading to lower combustion temperature for a cleaner, more efficient exhaust.
The engine is programmed to aggressively respond to changes in power needs, which can temporarily increase particulate matter. Since the exhaust filter removes particulate matter instead of the engine, the engine is left free to do what it is designed to do – deliver all of the power, torque, plus transient response needed at the exact moment needed.
Wastegate Turbocharger
Wastegate turbochargers are designed to develop more airflow at lower engine speeds to improve low-speed torque. The wastegate control device bleeds off a portion of the exhaust flow at higher engine speeds. Wastegate turbos deliver improved transient response and higher peak torque without compromising engine envelope size. They also provide the lowest installed cost across a given power range.
For more information regarding EPA regulations and the technology behind John Deere Integrated Emissions Control systems, please visit the following link: http://www.deere.com/wps/dcom/en_US/campaigns/ag_turf/emissions/final_tier_4.page or https://www.deere.ca/en/engines-and-drivetrain/final-tier-4/
| Engine description | John Deere PowerTech™ 4045 EWL | |||
|---|---|---|---|---|
| Engine displacement | 4 cylinder: 4.5 L 276 cu in. |
|||
| Rated engine power | At 2200 rpm: 95.8 kW 130 hp |
|||
| Maximum engine power | 99.9 kW 133.9 hp |
|||
| Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
|||
| Transmission type | Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
|||
| Hydraulic pump rated output | 97 L/min 25.6 gpm |
|||
| Rear hitch category (SAE designation) | Category 2; convertible to 1 | |||
| Base machine weight | 3964 kg (8,740 lb) |
| Description | John Deere PowerTech™ 4045 EWL | |||
|---|---|---|---|---|
| Engine type | 4045HLV82 | |||
| Engine family | NJDXL04.5317 | |||
| Rated speed | 2200 rpm | |||
| Aspiration | Turbocharged/air-to-air aftercooled | |||
| Cylinders liners | Wet sleeved | |||
| Emission level | Final Tier 4 | |||
| After treatment type | DOC/SCR | |||
| Displacement | 4 cylinder: 4.5 L 276 cu in. |
| Rated power | At 2200 rpm: 95.8 kW 130 hp |
|||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
|||
| Power boost | At 1900 rpm: 4 percent | |||
| Maximum engine power | 99.9 kW 133.9 hp |
|||
| Engine peak torque | At 1600 rpm: 541 Nm 399 lb-ft |
|||
| PTO torque rise | At 1600 rpm: 30 percent |
| Type | Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Powr8™ 32F/16R with creeper |
|||
|---|---|---|---|---|
| Reverser | Left hand, electrohydraulic | |||
| Clutch; wet/dry | Wet | |||
| Creeper | Powr8™ 32F/16R with creeper |
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | 97 L/min 25.6 gpm |
|||
| Available flow at a single rear SCV | 73 L/min 19.3 gpm |
|||
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
|||
| Number of mid selective control valves (SCVs) | Standard: Two Optional: Up to Three |
|||
| Joystick SCV control | Mechanical |
| Hitch draft control load sense type | Electrohydraulic | |||
|---|---|---|---|---|
| Remote control valves available | Standard: Two Optional: Three |
|||
| Hitch category (SAE designation) | Category 2; convertible to 1 | |||
| Maximum lift capacity behind lift points | Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb |
|||
| Sensing type | Lower link | |||
| Rear axle differential lock | Electrohydraulic |
| Drawbar category | Category 2 | |||
|---|---|---|---|---|
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
| Type | Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
|||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
|||
| PTO actuation | Electrohydraulic |
| Category | Category 2 | |||
|---|---|---|---|---|
| Standard lift capacity | 1931 kg 4257 lb |
|||
| Front power take-off (PTO) | 1000 rpm (21 spline) 34.9 mm (1.375 in.) | |||
| PTO speed | 1000 at 2200 rpm |
| Type | Standard: Flange Optional: Rack-and-pinion (Bar) |
|||
|---|---|---|---|---|
| Final drive type | Inboard planetary | |||
| Differential controls | Electrohydraulic | |||
| Brakes, type and control | Hydraulic wet disc |
| Type | Mechanical Front Wheel Drive (MFWD) |
|---|
| Rear | MFWD: 18.4R30 (460/85R30) R1W Radial | |||
|---|---|---|---|---|
| Wheel tread range | MFWD: front: 1299-1997 mm 51.1-78.6 in. rear: 1350-2286 mm 53.1-90 in. |
|||
| Turning radius with brakes | MFWD: 3.85 m 12.6 ft |
|||
| Turning radius without brakes | MFWD: 4.0 m 13.1 ft |
| Alternator size | Cab: 120 amp ISOBUS/GreenStar™ Ready: 200 amp |
|||
|---|---|---|---|---|
| Battery options | 12 V | |||
| Working lights | Standard: Halogen Optional: LED |
|||
| Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
|||
| Type of bulb in beacon (Halogen, Zenon, LED) | Optional: LED |
| Seat | Standard: Mechanical suspension Optional: air ride or premium air ride |
|||
|---|---|---|---|---|
| Instructional seat | Optional | |||
| Display | Digital Dash Display with three liquid crystal displays (LCDs) | |||
| Radio | Optional | |||
| dB(A) rating | 78 dBA |
| Wheelbase | 2350 mm 92.5 in. |
|||
|---|---|---|---|---|
| Overall length | OOS: 4081 mm 160 in. Cab: 4089 mm 161 in. |
|||
| Approximate shipping weight, Open;Cab | 4175 kg 9185 lb |
| Base machine weight | 3964 kg (8,740 lb) |
|---|
| Fuel tank | 165.4 L 43.7 U.S. gal. |
|||
|---|---|---|---|---|
| Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
| Guidance | Optional: AutoTrac™ with AutoTrac Basic |
|---|
| AutoTrac ready | Optional | |||
|---|---|---|---|---|
| ISOBUS ready | Optional | |||
| Country of manufacture | Pune, India |
| Date collected | 6-Jan-2023 |
|---|
Related Equipment
-
Z985R EFI New
Build Your Own: Z985R EFI$23,899.00Starting at$21,445.00 -
5090E Utility Tractor New
View Model: 5090E Utility Tractor -
Q865R EFI QuikTrak™ Stand-On Mower New
Build Your Own: Q865R EFI QuikTrak™ Stand-On Mower$15,589.00Starting at$14,355.00 -
335 P-Tier Compact Track Loader New
View Model: 335 P-Tier Compact Track Loader -
60 P-Tier Compact Excavator New
View Model: 60 P-Tier Compact Excavator -
344 P-Tier Compact Wheel Loader New
View Model: 344 P-Tier Compact Wheel Loader -
334 P-Tier Skid Steer New
View Model: 334 P-Tier Skid Steer -
iGrade™ New
View Model: iGrade™ -
GreenStar™ Rate Controller New
View Model: GreenStar™ Rate Controller -
GreenStar™ Rate Controller (Dry) New
View Model: GreenStar™ Rate Controller (Dry) -
Rate Controller 2000 New
View Model: Rate Controller 2000
