New Equipment Agricultural Equipment Hay & Forage Disc Mowers R160

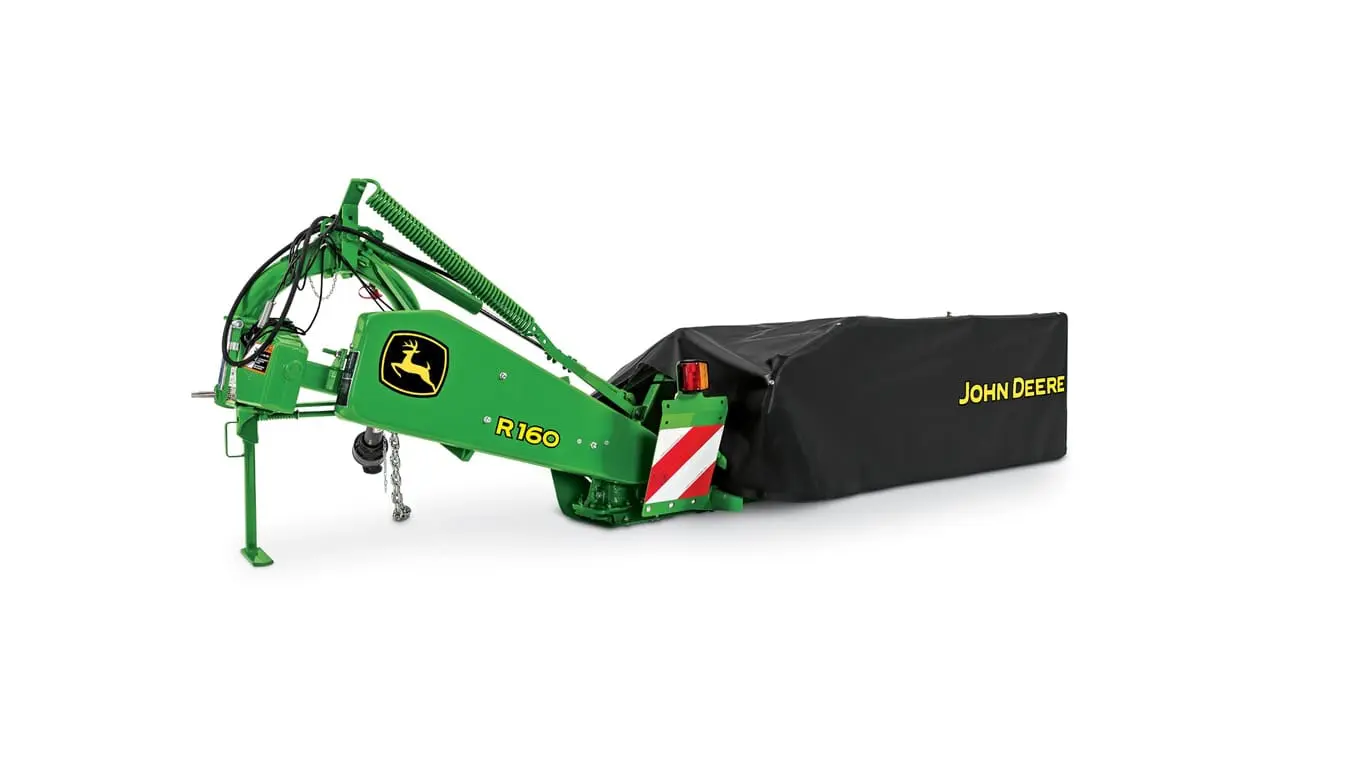

R160

NEW

R160

Local Pickup Only
4.9% for 60/mo | Apply Today
Get A Quote
Key Features
    • Easy-to-attach 3-point hitch tractor hookup
    • High-clearance frame and suspension
    • Disc quill easy to remove for serviceability
View More Specs
R160
Features
Specifications

Easy-to-attach 3-point hitch tractor hookup

Easy-to-attach 3-point hitch Easy-to-attach 3-point hitch

The R160 and R200 Mowers attach to tractors with a Category 1 and 2, 3-point hitch. The R160 and R200 are not quick-hitch compatible.



The R160 and R200 models rely on the parking stand to hold up 3-point hitch arms to ensure easy hook up to the tractor.

Adjustable lower hitch pins Adjustable lower hitch pins
#

Lower hitch pins can be adjusted left or right to match the mower offset for tractors with wider tire spacing. The R160 and R200 models have an offset range of 172 mm (7 in.).

Uptime

 Cutting arc provides a wide range of cutting angles

Heavy-duty cutterbar for the toughest cutting conditions

Rotary disc cutterbar Rotary disc cutterbar
#

A multi-V-belt drive system transfers power from the gearbox to each rotary disc.

Power is transmitted to the rotary discs through fully enclosed gears running in oil for a quiet, smooth, reliable operation.



All models have a spring-loaded belt tensioner for easier belt adjustment. The belt tension automatically compensates for initial belt stretch, increasing belt life.

High-speed rotary discs High-speed rotary discs
#

Rotating at 2986 rpm, the high-speed discs cut in the toughest conditions.

The low-profile cutterbar allows a close cut while maintaining a level cutterbar. The cutting height is controlled by adjusting the tilt of the cutterbar.

Each disc has two free-swinging knives:

  • Easy to remove and replace
  • Two cutting edges, doubling the use life

Easy-to-remove disc quill

Removable quill Removable quill
#

The cutterbar is protected from severe impact should an object be struck.

  • Disc drive-shaft shears
  • Reduces chance of internal damage to cutterbar
  • Improves cutterbar reliability

Disc quills are easily removed from the top of the cutterbar for improved serviceability.



Each disc has two free-swinging knives:

  • Easy to remove and replace
  • Two cutting edges, doubling the use life
  • Swings away to reduce possible damage if a solid object is struck

Lift and suspension system

Heavy floatation spring Heavy floatation spring

The disc mowers use the hydraulic cylinder to lift the cutterbar from the cutting position to the transport position, where the cutterbar automatically locks into place.



The R160 has a cutting arc of +35 degrees to -22 degrees.



The R200 has a cutting arc of +35 degrees to -16 degrees.



A heavy spring establishes even flotation along the full length of the cutterbar in a variety of different field conditions and topography.

Performance

Cutting arc provides a wide range of cutting angles



Mower Number of disks
Four
Number of knives
Eight
Width of cut
1.6 m
5.25 ft
Weight
420 kg
925 lb
Disk speed
2,986 rpm
Cutting arc
+35 to -22 degree (angle)
Lift system
Hydraulic
Minimum PTO HP
22 kW
30 hp
PTO speed
540 rpm
Number of disks Four
Number of knives Eight
Width of cut 1.6 m
5.25 ft
Transport width
Weight 420 kg
925 lb
Disk speed 2986 rpm
Cutting speed
Cutting arc +35 to -22 degree (angle)
Lift system Hydraulic
Minimum PTO HP 22 kW
30 hp
PTO speed 540 rpm
Tilt
Breakaway
Stroke
Sickle speed
Knife drive
PTO drive
Date collected
