NEW

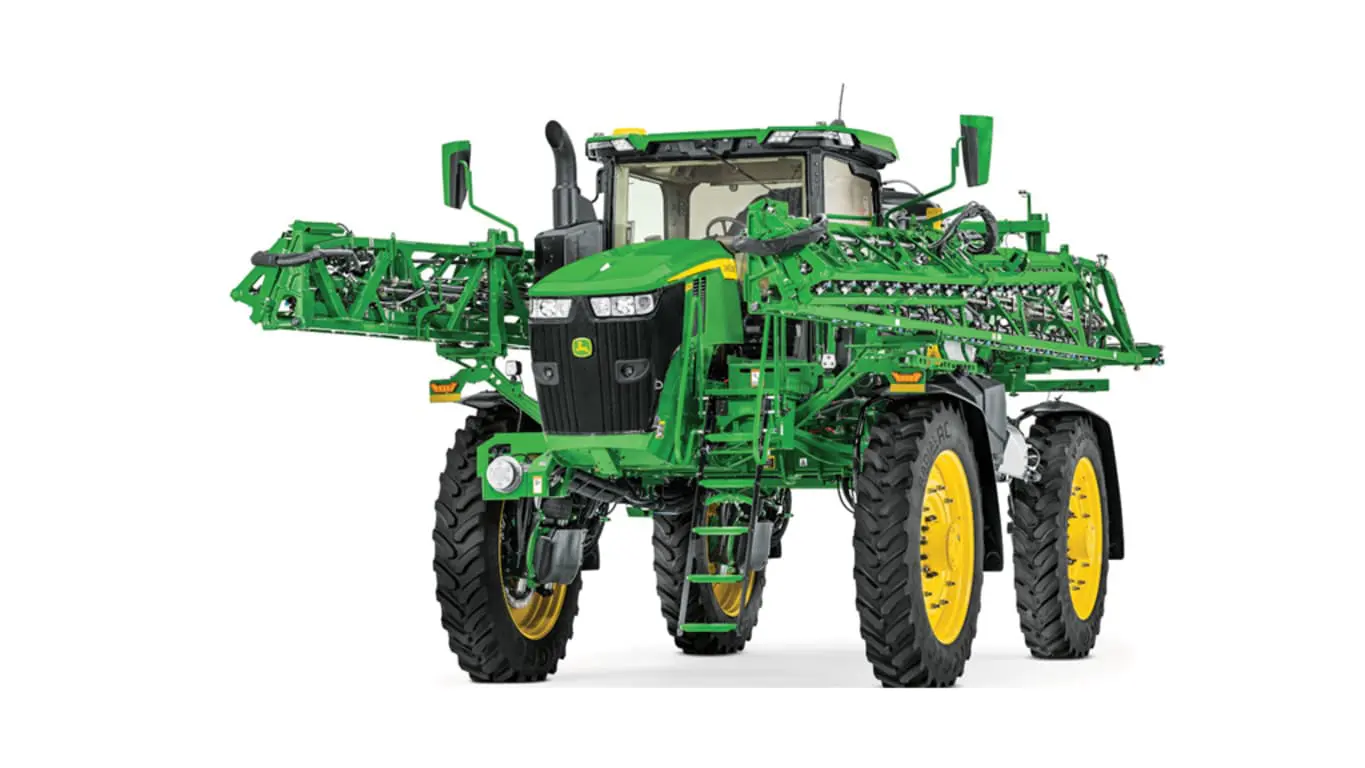

612R
Key Features
- 1,200-gallon (4,542 L) tank
- Up to 132-foot (40.23 m) boom
- 355 hp, 9.0 L engine
- 35 mph (56.3 km/h) transport speed
0% Financing Available On Select Compact Tractors Browse Tractors
612R
612R
Features
Specifications
Brochure
Spray, save and protect yield with See & Spray™
See & Spray Ultimate spraying crops in season
See & Spray Select spraying fallow ground
See & Spray Premium spraying crops in season
When margins are tight and application windows are narrow, every dollar and every droplet need to work as hard as they can. John Deere’s unique portfolio of See & Spray products bring resource-saving precision to the field.
Technology evolution
John Deere has focused on taking farmers’ application from field level to plant level over the years. From field to broadcast, section control to ExactApply™ individual nozzle control, and now the next step – to artificial intelligence and machine learning. All See & Spray offerings work in conjunction with ExactApply nozzle control. They use a combination of cameras and processors to detect weeds before activating only the nozzles necessary to apply a burst of herbicide to the weed, achieving a hit rate comparable to traditional broadcast spray.
Data insights
How do you know See & Spray is doing its job? With the monitoring capabilities of John Deere Operations Center™ application and the G5Plus CommandCenter™ Display, you can track job quality and savings during and after application. These technology tools also offer weed pressure mapping, providing insights to make even better field management decisions. Weed pressure mapping only occurs when See & Spray is active during an operation.
NOTE: Weed pressure maps are not available with See & Spray Select.
Sustainability
Using less herbicide means using less water and creating less opportunity for drift, and that’s good for the land, water, and air that sustain us.
Additionally, See & Spray provides even more benefits for growers looking to make the best possible decisions about weed control.
See & Spray Ultimate benefits
- Improve weed control – Combat herbicide resistance with a dual-product solution system that uses two independent tank mixes in one pass, avoiding antagonism in more aggressive tank mixes.
- Reduce solution use – Reduce the applied volume of herbicide by more than two-thirds by avoiding inefficient traditional broadcast application in corn, cotton, and soybeans.*
- Gain cost efficiency – More than two-thirds spray volume reduction means significantly lower herbicide costs, fewer tendering stops, and more acres covered in a day.
*NOTE: Results based on internal John Deere strip trials in corn, soybeans, and cotton in Iowa, Mississippi, Texas, and Illinois in typical growing conditions with carrying weed size, crop canopy, and field conditions using targeted spray of non-residual herbicide only and using current software/algorithm at time of trials. Results will vary based on crop and weed pressure.
See & Spray Premium benefits
- Reduce solution use – Reduce the applied volume of herbicide by more than 50%** by avoiding inefficient traditional broadcast application in corn, cotton, and soybeans.
- Gain cost efficiency – Significant spray volume reduction means significantly lower herbicide costs, fewer tendering stops, and more acres covered in a day.
- Sustainability and stewardship – See & Spray Technology allows customers to spray only the weeds, reducing the amount of chemical applied.
- Improve weed control – You may save enough to justify applying a different chemistry while improving your ability to manage herbicide-resistant weeds.
**NOTE: Results based on internal John Deere strip trials in corn, soybeans, and cotton in Arkansas, Nebraska, and Texas, in typical growing conditions, with varying weed size, crop canopy, and field conditions, using targeted spray of non-residual herbicide only, and using current software/algorithm at time of trials. Results vary based on crop; for details see Deere.com/Premium. Individual results will vary.
See & Spray Select benefits
- Reduce solution use – By avoiding inefficient traditional broadcast applications and spraying only when weeds are detected, you can reduce the applied volume of herbicide by up to 77 percent.***
- Gain cost efficiency – Significantly reduce herbicide costs, make fewer tendering stops, and cover more acres in a day.
- Improve weed control – You may save enough to justify applying a different chemistry while improving your ability to manage herbicide-resistant weeds. Research has shown that weeds sprayed with complex tank mixes and more than two modes of action are 83 times less likely to develop herbicide resistance.
***NOTE: In tests over 75,000 acres of fallow ground, typical weed pressure of 3,000 weeds per acre, and with spray length settings of small medium, customers experienced an average herbicide savings of 77 percent compared to a traditional broadcast sprayer.
Cover more acres more accurately and more consistently with ExactApply™ system
Turn compensation mode
Individual nozzle control mode
Fertilizers and crop protection products are too expensive to waste, and seed is too valuable to risk over- or under-treating. To help make sure your solution is getting to the crop at exactly the right rate and droplet size across a wider range of speeds, look to ExactApply nozzle control system.
The heart of the ExactApply system is a six-nozzle turret with multiple modes of operation to help maintain target rate and pressure. From the cab, operators can choose:
- 15-Hz pulse-width modulation (PWM) pulses one solenoid for more consistent pressure and droplet size over a wider range of ground speeds and application rates.
- 30-Hz PWM pulses both solenoids at 15 Hz for more thorough coverage during high-volume applications, like liquid fertilizer.
- AutoSelect A/B mode automatically switches between two nozzles to maintain a constant spray pressure while you’re spraying conventionally.
- Turn compensation mode decreases the spray rate on the inside of a turn while increasing the rate on the outside, ensuring consistent application across the entire width of the boom.
- Individual nozzle control minimizes overlap by controlling spray application at the individual nozzle level, not in 2.4- to 3.35-m (8- to 11-ft) section widths.
By maintaining a target rate and pressure over a wider range of speeds, ExactApply lets you cover up to 20 more acres per hour (based on a 3.2-km/h [2-mph] increase in operating speed) with more consistent spray deposition, saving you input costs and preserving more of your crop’s yield potential.
New for model year 2025, John Deere is introducing ExactApply Variable Rate across the boom and A+B switching and pulsing. ExactApply Variable Rate enhances our ExactApply nozzle capabilities by enabling the delivery of multiple rates across the boom. This innovation allows for improved rate resolution, particularly while utilizing application prescriptions. Critical uses include tailored fertilizer for small grains and corn based on plant and soil conditions, such as top-dressing in wheat and pre-emerge nutrients for corn. ExactApply Variable Rate also introduces pulsing during A+B Switching, expanding performance and speed ranges while ensuring proper droplet size. Moreover, it significantly increases the rate range during curve compensation, allowing versatile utilization across all three nozzle configurations down the boom for optimal application precision. ExactApply Variable Rate is a software update included in order code 4985- John Deere ExactApply Nozzle Control and available on model year 2025 R4023, 408R, 410R, 612R, as well as the 616R sprayers. It is also compatible with model year 2022 and forward. A+B Switching and Pulsing compatible with all ExactApply configurations.
ExactApply is available as a factory-installed option, as well as through Precision Upgrades and aftermarket attachments. Precision Upgrades for ExactApply are available for 400, 600, and 4 Series Sprayer models. ExactApply aftermarket attachment kits are available for 4 Series Sprayer models.
Save product with pressure recirculation and product reclaim
Boom plumbing
Pressure recirculation plumbing
Quality of application is critical. Avoid settling in the plumbing by keeping solution in motion with pressure recirculation, coupled with product reclaim and boom air purge. These features save precious time, product, and expense when rinsing and priming the boom while switching solutions.
Cost savings
- Pressure recirculation primes the boom versus traditional boom prime where liquid tends to be sprayed out, saving 113.6 L (30 gal.) each time. If an operator does this process 10 times a day, coupled with approximately 85.2 L (22.5 gal.) of solution savings with product reclaim one to two times per day, these two features together could save up to $600* a day.
- *NOTE: Assumes 113.6 L (30 gal.) of residual product in the system at 93.5 L/ha (10 gpa) and $20 per acre 10 times per day. Adjust the calculation to suite your operation.
- Reclaim expensive crop protection solutions between applications or required service in the field with product reclaim.
- Potentially reduce crop damage from residual chemical buildup.
Performance:
- Experience uniform distribution of product across the boom.
- Reduce nozzle clogging with increased agitation of product in solution system.
Keep solution in suspension in the boom and system while the machine is on and not spraying with pressure recirculation. Recirculation during rinsing removes any chemical that settled out of the suspension while spraying, resulting in higher rinse water velocity in the spray pipe. Rinse water can be recirculated multiple times to further clean spray pipes and reduce cleanout times. Boom pressure recirculation mixes the solution and primes the boom before spraying to obtain a homogenous chemical mixture throughout the solution system and up to the nozzle tip. This recirculation improves spray quality and reduces time at the start of spraying.
Product reclaim transfers chemical out of the boom plumbing into solution tanks to improve boom rinse functions, also reducing exposure when servicing nozzle bodies. Additionally, save on chemical cost and enable easier rinse water collection between rinses when operators are not spraying out of the boom in the field.
NOTE: Pressure recirculation and product reclaim kits are available to order as aftermarket upgrade kits through Parts and as Complete Goods through precision upgrade. Precision upgrades offers kits for 400, 600, and 4 Series Sprayers while Parts offers kits for R4030-R4060 Sprayers.
Greater fuel efficiency and lower cab noise with CommandDrive™ powertrain
Experience fuel saving and noise reduction with CommandDrive
With the CommandDrive powertrain, save fuel, reduce cab noise, get improved traction in challenging conditions, and cover more acres per day. CommandDrive offers the operator an Auto Mode that automatically directs the engine to run at the lowest rpm necessary to maintain ground speed and hydraulic functions and to meet the demands of the solution system.
CommandDrive also allows operators to adjust the aggressiveness of acceleration and deceleration and features an Auto Idle system that reduces engine speed to 900 rpm when the machine is in park. It all adds up to:
- 20 percent or greater fuel savings
- More acres sprayed per day, thanks to fewer fuel stops and improved traction in rough conditions
- Reduced in-cab noise levels by 3to 5 decibels
- Fewer demands on the operator
CommandDrive is base equipment on all 408R, 410R, 412R, 612R, and 616R Sprayers, as well as 400R and 600R Dry Spinner Spreaders.
Bumps, rolls, and hills: BoomTrac™ Pro 2 system can handle it all
Boom height sensor
Inertia measurement unit (IMU) sensor on rear of machine
For the highest level of spray accuracy with less drift and reduced risk of boom damage, look to the BoomTrac™ Pro 2 automatic boom-height control system.
Thanks to the addition of an inertia-monitoring sensor that helps correct for chassis roll, BoomTrac Pro 2 offers up to 22 percent greater spray accuracy (composite score over a variety of terrains) compared to the previous BoomTrac Pro system, and a five time increase in the amount of time the boom maintains its target height, which is a real plus in rough or hilly conditions. Along with the improved accuracy and reduced drift, operators will appreciate having one less function to perform and one less thing to worry about.
Simple turnkey experience with the StarFire™ 7500 Integrated Receiver
StarFire 7500 Universal Receiver available on John Deere sprayers
The StarFire 7500 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7500 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.
Order codes
Code |
Attachment |
Description |
1880 |
|
Less Receiver |
188U |
|
StarFire 7500 Universal Receiver with SF1 |
1892 |
|
StarFire 7500 Universal Receiver with 1 year SF-RTK License |
189D |
|
StarFire 7500 Universal Receiver with RTK (base station) Permanent License |
188H |
|
StarFire Ready, Less Receiver |
Benefits to the StarFire 7500 with SF-RTK
- Long-term repeatability. See sales manual for geographic limitations.
- 8-minute pull-in time
- 2.5-cm (1-in.) pass-to-pass accuracy
To learn more about the StarFire 7500, visit the StarFire 7500 page.
Keep operators fresh with Comfort and Convenience packages and Visibility packages
Model year 2022 and newer Ultimate lighting
Model year 2021 4 Series LED lighting
When you’re staring down a string of 2,000-acre days, your equipment isn’t all that needs to be operating at peak – your operators need to be at their best, too. That’s why John Deere put together a range of cab packages to give you just the right features to keep your operators comfortable and efficient.
For corner-office comfort that can help make short work of the longest days, look at the Ultimate Comfort and Convenience package. The heated, ventilated ActiveSeat™ II isolates the operator from up to 90 percent of vertical movement and comes in leather with massage functions. The Ultimate package also gives you a premium XM® ready sound system with subwoofer, a leather-wrapped steering wheel, a refrigerator, and more.
When the long days turn into long nights, you’ll be glad you ordered the Ultimate Visibility package. A full 360 degrees of powerful light-emitting diode (LED) cab lighting gives you a clear view all around the machine, while eight LED service lights illuminate critical service areas.
The following table gives a quick reference of what is contained in the Visibility packages.
|
Feature |
Premium Visibility package |
Ultimate Visibility package |
Cab |
Halogen work lights (cab roof) |
— |
— |
LED work lights (cab roof) |
Six |
Six |
|
LED beacons (cab roof) |
Two |
Two |
|
LED convenience lights |
Eight |
Eight |
|
Front sunshades |
X |
X |
|
Right-side sunshades |
X |
X |
|
Rear sunshades |
X |
X |
|
Front wiper |
X |
X |
|
Right-side wiper |
X |
X |
|
Vehicle |
Halogen work lights (vehicle) |
— |
— |
Halogen hood work lights |
— |
— |
|
Halogen high beam (hood) |
— |
— |
|
Halogen low beam (hood) |
Two |
Two |
|
LED high beam (hood) |
Two |
Two |
|
LED work lights (vehicle) |
Six |
Six (two of these are higher, 4400-lumen output lights) |
|
LED hood work lights |
Four |
Four |
|
LED beacons |
One rear |
One rear |
|
Boom LED lights |
Two |
Two |
|
Boom halogen lights |
— |
— |
|
Manually adjustable left-hand and right-hand boom mounted with bubble mirror |
X |
X |
|
Manually adjustable right-hand cab |
— |
— |
|
Electrically adjustable and heated right-hand cab |
X |
X |
|
Manual underframe mirror |
— |
— |
|
Electrically adjustable and heated underframe mirror |
X |
X |
|
Additional camera ready |
X |
— |
|
Left-hand and right-hand side view camera ready |
X |
— |
|
Left-hand and right-hand side view camera installed |
— |
X |
|
Integrated backup camera |
X |
X |
Ultimate Comfort and Convenience cab
In addition to the Visibility packages available, the following table gives a quick reference of what is contained in the Cab Comfort and Convenience packages.
| Select Comfort and Convenience package | Ultimate Comfort and Convenience package | |
| Cloth seat | X | — |
| Leather seat with carpeted floor mat | — | X |
| ActiveSeat™ II | — | X |
| Heated and ventilated leather seat with massage functionality | — | X |
| Mechanical fore/aft and lumbar support | X | — |
| Electronic controls and pneumatic lumbar support | — | X |
| Adjustable right-hand CommandARM™ controls with integrated CommandCenter™ touchscreen display | X | X |
| 24-degree right-hand seat swivel and 8-degree left hand seat swivel | X | — |
| 24-degree right-hand seat swivel and 24-degree left-hand seat swivel | — | X |
| AM/FM Aux and Bluetooth® wireless inputs plus two cab speakers | X | — |
| 16.5-cm (6.5-in.) touchscreen radio, XM ready, and 6.1 speaker system with subwoofer including AM/FM Aux with Bluetooth™ wireless inputs | — | X |
| Automatic temperature controls with controls located on CommandARM | X | X |
| Footrests | — | X |
| Business band ready | X | X |
| Refrigerator | — | X |
| Four USB and one 12-V outlet | X | X |
| Right-hand accessory rail | — | X |
| 120-V outlet | — | X |
| Leather-wrapped steering wheel | — | X |
Some of the features in the chart above are also available as attachments. There are also many options for mounting a variety of monitors, tablets, and phones.
*NOTE: Bluetooth where certification allows.
Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio, Inc.
John Deere Signature Edition: the ultimate in comfort, visibility, and technology
NOTE: Not available on sprayers ordered as dry box only.
John Deere Signature Edition badge
To make the most powerful John Deere options available in one cost-effective package, 408R through 616R Sprayer models can be ordered as John Deere Signature Edition. Marked with an exclusive badge only available on the Signature Edition, this package includes:
- Ultimate Comfort and Convenience package
- Ultimate Visibility package
- ActiveSeat™ II equipment
- JDLink™ 5-year subscription
- Integrated StarFire 7500 receiver with SF-RTK
- G5Plus CommandCenter Display and a G5 Advanced License
- Automatic Solution Control*
- BoomTrac™ Pro 2*
- ExactApply™ system*
Get all the top-of-the-line comfort features and technology options in one special edition: The John Deere Signature Edition.
For any additional mounting needs, there are part solutions available through John Deere to resolve unique mounting configuration needs.
*NOTE: Automatic Solution Control, BoomTrac Pro 2, and ExactApply system are not available on the 400R and 600R.
Precision Ag Technology enables you to monitor performance and maximize productivity
Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance
Connect Mobile overview
John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.
Spraying attributes
Monitor key performance indicators in map layers and dashboard tiles such as:
- Actual rate
- Rate deviation
- Pressure
- Ground speed
- Droplet size
- Target rate
- Flow rate
- Tank volume
- Productivity
- Fuel rate
In base equipment
Connect Mobile hardware is factory installed on all model year 2022 and newer 408R, 410R, 412R, 612R, 616R, 400 and 600 Series Sprayers and dry machines as well as model year 2017 to 2021 R4030, R4038, R4044, R4045, and R4060 Sprayers, making it easy to get started with Connect Mobile.
Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.
iPad and Apple are trademarks of Apple Inc.
John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
Connected Support technology
When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.
John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.
With your permission, John Deere Connected Support:
- Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
- Saves time by remotely viewing in-cab displays, reducing trips to the machine
- Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
- Connects experts with the information needed to respond to downtime faster and prevent it altogether
With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.
New Leader® Dry Spinner Spreader offers maximum versatility
New Leader Dry Spinner Spreader on a 400R or 600R
Get three-season flexibility from your application equipment with the New Leader DS20 or DS30 Dry Spinner Spreader.
The DS20 offers of up to 5.6-m3 (200 cu ft), or 6.6 tons, of dry fertilizer, while the DS30 bumps capacity to 8.5 m3 (300 cu ft), or 9 tons, of dry fertilizer. Both models feature:
- Four-hour conversion from a liquid-application setup
- Variable-rate application ranging from 34 kg/ha (75 lb/acre) to 3 tons/acre
- Spread width of up to 32 m (105 ft) thanks to the 1.83-m (72-in.) spinner height
- New Leader G4 spinner technology for a consistent spread pattern and more uniform application
- Available in single or the MultApplier (dual product bins) in both the 304 stainless or 409 painted spreader construction with #4 belt-over-chain conveyor
- The G4 remains the only option for being fully integrated with the John Deere SpreadStar™ dry rate control system.
- New Leader G4 Edge and G5 are being added into the dry portfolio for model year 2024 machines.
- Available in the 304 stainless steel single bin or the MultApplier (dual bin options). The MultiBin™ is not an available option currently.
- Both the G4 Edge and G5 box options on the 400 and 600 series will now offer the AgLeader ISO-VT dry rate controller.
Dry Spinner Spreader comparison chart
| New Leader box options – DS20/DS30 dry spinner spreader | |||
|
G4 |
G4 Edge |
G5 |
John Deere SpreadStar dry rate control system |
X |
|
|
New Leader ISO-VT dry rate control system |
|
X |
X |
Left hand and right hand spinner speed control boundary spreading |
|
X |
|
Precision independent spinner control monitoring |
|
X |
X |
16-section swath width control |
|
|
X |
1/2 width spreading |
|
X |
X |
Last pass control |
|
|
X |
Automatic feedgate and fan frame control |
|
|
X |
Centralized grease banks |
X |
X |
X |
Tarp ready |
X |
X |
X |
Automatic chain oiling routine and alarms |
X |
X |
X |
304 stainless steel |
X |
X |
X |
409 stainless steel |
X |
|
|
MultApplier compatible |
X |
X |
X |
Backup camera ready |
X |
X |
X |
| 400R and 600R dry spinner spreader | |
| New Leader G4 – | |
| 4800 | DS20 G4 – 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4806 | DS20 G4 – 304 stainless steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate |
| 4808 | DS20 G4 – 409 painted steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate |
| 4818 | DS20 G4 – 409 painted steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4820 | DS20 G4 – 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate |
| 4814 | DS30 G4 – 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4816 | DS30 G4 – 409 painted steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4834 | DS30 G4 – 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate |
| 400R and 600R dry spinner spreader | |
| New Leader G4 Edge – | |
| 4842 | DS20 G4 Edge – 304 stainless steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate |
| 4844 | DS20 G4 Edge – 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4846 | DS20 G4 Edge – 304 painted steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate |
| 4848 | DS30 G4 Edge – 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4852 | DS30 G4 Edge – 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate |
| 400R and 600R dry spinner spreader | |
| New Leader G5 – | |
| 4854 | DS20 G5 – 304 stainless steel, single bin, #4 belt over chain, 28 cm (11 in.) feedgate |
| 4856 | DS20 G5 – 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4858 | DS20 G5 – 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate |
| 4862 | DS30 G5 – 304 stainless steel, single bin, #4 belt over chain, 13 cm (5 in.) feedgate |
| 4864 | DS30 G5 – 304 stainless steel, MultApplier (dual bin), #4 belt over chain, 13 cm (5 in.) feedgate |
New Leader is a trademark of Highway Equipment Company.
| Rated engine power | 265 kW 355 hp |
|||
|---|---|---|---|---|
| Maximum engine power | 289 kW 388 hp |
|||
| Solution system – Capacity | 4542.5 L 1200 gal. |
|||
| Rinse tank capacity | 646 L 170 gal. |
|||
| Boom length options/Material | 27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft Boom material: Steel or carbon fiber |
|||
| Spray speed range | 40 km/h 25 mph |
|||
| Transport speed, maximum | 56.8 km/h 35 mph |
|||
| Suspension | Dual-strut independent wheel air-ride suspension | |||
| Crop clearance with standard tires | 147 cm 58 in. |
|||
| Total weight (empty solution tank) | 16,962 kg 37,394 lb *Includes: 36.6-m (120-ft) steel boom, pressure recirculation, ExactApply™, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options. |
| Rated engine power | 265 kW 355 hp |
|||
|---|---|---|---|---|
| Maximum engine power | 289 kW 388 hp |
|||
| Emissions | Final Tier 4 (FT4) | |||
| Number of cylinders | Six | |||
| Displacement | 9.0 L 549 cu in. |
|||
| Alternator | 250 amp | |||
| Fuel tank capacity | 565 L 149.2 gal. |
|||
| Diesel exhaust fluid (DEF) tank capacity | 29.5 L 7.8 gal. |
| Capacity | 4542.5 L 1200 gal. |
|||
|---|---|---|---|---|
| Tank material | Stainless steel | |||
| Rinse tank capacity | 646 L 170 gal. |
|||
| Quick fill size | 7.6 cm 3 in. |
|||
| Automatic section control | John Deere Section Control (optional) | |||
| Solution system control | Manual Option: Automatic |
|||
| Fill location | Side fill, front fill (optional), and LoadCommand (optional) | |||
| Chemical injection method | Direct injection (optional) | |||
| Chemical eductor | Stainless steel | |||
| Chemical eductor capacity (size) | 32 L 8.5 gal. |
|||
| Flow meter size | 5.1 cm 2 in. |
|||
| Suction strainer | 20 mesh | |||
| Pressure strainer | 50 mesh | |||
| Boom strainer | 80 mesh |
| Boom length options | 27.4, 30.5, 36.6, or 40.2 m 90, 100, 120, or 132 ft |
|||
|---|---|---|---|---|
| Automatic boom height | BoomTrac Pro 2 – five sensor (optional) | |||
| Plumbing material | Stainless or polypropylene | |||
| Boom Material | Steel or carbon fiber | |||
| Ground height adjustment | 50 to 245 cm 19.6 to 96.5 in. |
|||
| Breakaway width | Stainless-steel boom – 3.3 m 10.8 ft Carbon fiber boom – 3.7 m 12.1 ft |
|||
| Boom sections | 13 sections with boom length: 40.2 m 132 ft 11 sections with boom length: 36.6 m 120 ft 9 sections with boom length: 30.5 m 100 ft 7 sections with boom length: 27.4 m 90 ft |
|||
| Nozzle spacings | ExactApply™: 38.1 or 51 cm 15 or 20 in. |
| Type | Hydrostatic | |||
|---|---|---|---|---|
| Drive | Full-time four-wheel drive (4WD) | |||
| Shifting | Electrohydraulic | |||
| Hydraulic reservoir capacity | 98.4 L 26 gal. |
|||
| Spray speed range | 40 km/h 25 mph |
|||
| Transport speed, maximum | 56.8 km/h 35 mph |
| Dry compatible | Yes: 5.7 or 8.5 m3 200 or 300 cu ft |
|||
|---|---|---|---|---|
| Suspension | Dual-strut independent wheel air-ride suspension | |||
| Crop clearance with standard tires | 147 cm 58 in. |
|||
| Front tires | 380/105 R50, 420/95 R50, or 480/80 R50 | |||
| Rear tires | 380/105 R50, 420/95 R50, or 480/80 R50 | |||
| Flotation tires | 620/70 R46 or 800/55 R46 | |||
| Hydraulic tread adjust | Hydraulic | |||
| Wheel tread spacing | 305 to 406 cm 120 to 160 in. |
|||
| Wheel base | 430 cm 169.3 in. |
|||
| Turning radius | 9.2 m 30.2 ft |
|||
| Parking brake | Spring-engaged, hydraulically disengaged wet disk pack | |||
| Primary brakes | Hydrostatic | |||
| Ladder raise/lower | Hydraulic | |||
| Total weight (empty solution tank) | 16,962 kg 37,394 lb *Includes: 36.6-m (120-ft) steel boom, pressure recirculation, ExactApply, and 38.1-cm (15-in.) spacing. Weight will vary depending on all options. |
| Air compressor | Standard: Onboard air | |||
|---|---|---|---|---|
| Foam marker capacity | Injection foamer |
| Date collected | 1-Mar-2021 |
|---|
Related Equipment
-
R4023 New
View Model: R4023 -
400R New
View Model: 400R -
616R New
View Model: 616R -
412R New
View Model: 412R -
410R New
View Model: 410R -
408R New
View Model: 408R -
600R Dry Spinner Spreader New
View Model: 600R Dry Spinner Spreader -
STS12 Hagie™ Self-Propelled Sprayer New
View Model: STS12 Hagie™ Self-Propelled Sprayer -
STS16 Hagie™ Self-Propelled Sprayer New
View Model: STS16 Hagie™ Self-Propelled Sprayer -
STS20 Hagie™ Self-Propelled Sprayer New
View Model: STS20 Hagie™ Self-Propelled Sprayer -
2530L New
View Model: 2530L
