NEW
610
Key Features
- Offers a variety of sizes
- Implement warning lights enable safe transport
- Shovels and attaching hardware
- Sweeps and attaching hardware
610
610
Features
Specifications
Brochure
Offers a variety of sizes and excellent residue flow

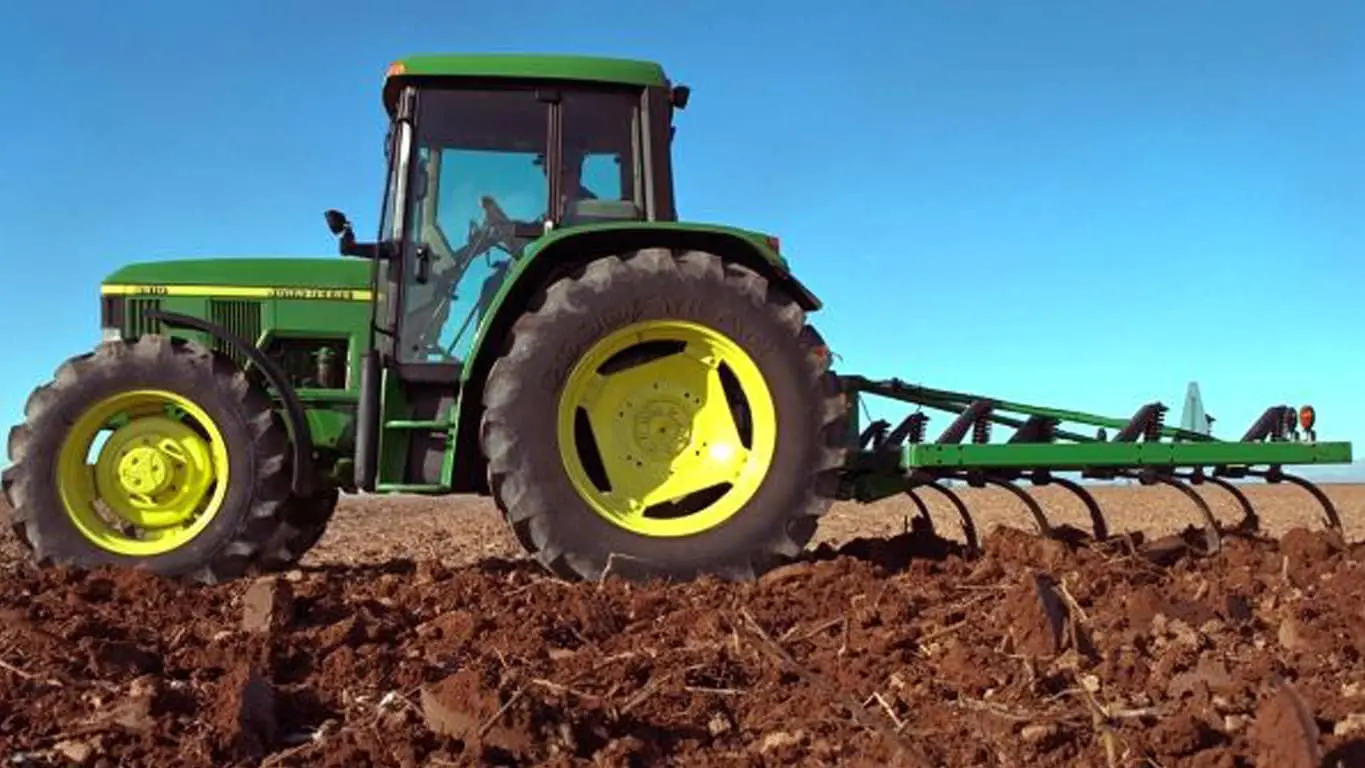

610 Chisel Plow
The 610 Chisel Plow is available in a variety of sizes to help match tractor horsepower and work designs.
Model |
Width |
Type of fold |
Standards |
| Three-bar integral | 2.44 m to 6.10 m (8 ft to 20 ft) |
Non-fold | Rigid |
| TruPosition™ | |||
| Tru-Depth™ |
Typical percents of the residue cover that remains from the 610 are listed as follows (the percentages do not take into account variables such as the condition of the residue, speed, and soil type):
Starting residue cover (percent) |
Remaining non-fragile* residue cover (percent) |
Remaining fragile** residue cover (percent) |
||||||
|
with |
with |
with |
with |
with |
with |
with |
with |
100 |
80 |
70 |
60 |
60 |
55 |
50 |
45 |
45 |
90 |
72 |
65 |
55 |
55 |
50 |
45 |
40 |
40 |
80 |
65 |
56 |
50 |
50 |
45 |
40 |
35 |
35 |
70 |
55 |
50 |
42 |
42 |
38 |
35 |
30 |
30 |
60 |
50 |
42 |
35 |
35 |
33 |
30 |
27 |
27 |
50 |
40 |
35 |
30 |
30 |
27 |
25 |
22 |
22 |
40 |
32 |
28 |
25 |
25 |
22 |
20 |
18 |
18 |
*Non-fragile residue includes crops like corn, sorghum, wheat (more than 45 bu).
**Fragile residue includes crops like soybeans, edible beans, peas, wheat (under 45 bu), sunflower, peanuts, cotton.
Strong mainframe withstands demanding field conditions
610 rigid frame
The 610 Chisel Plow features a large 102-mm x 102-mm (4-in. x 4-in.) tubular steel mainframe.
Welded construction adds the inner strength that withstands twisting and pulling through demanding field conditions.
Choice of rigid, TruPosition™, and Tru-Depth™ standards
Rigid standard
The rigid standard:
- Is in base equipment on three-section models
- Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
- Design is suited for fields having few obstructions
- Will till to 203 mm (8 in.) deep
- Good clearance to handle heavy trash
- 711-mm (28-in.) underframe
- 305-mm (12-in.) spacing
TruPosition standard
The TruPosition standard:
- Is optional on all models
- Cast pivot assembly holds shank firm while working in the soil
- Is 32 mm x 51 mm x 711 mm (1.25 in. x 2 in. x 28 in.)
- Shank is replaceable without disassembly of the standard assembly
- Trip action is suited for fields having rocks or other obstructions
- 550-lb trip 711-mm (28-in.) standard will till to 203 mm (8 in.) deep
- 711-mm (28-in.) underframe
- 305-mm (12-in.) spacing
- Trip height of 254 mm (10 in.) for good clearance
- Slotted lower hole to aid in removing ground-engaging tools
Tru-Depth standard
The Tru-Depth standard:
- Is optional on drawn rigid and select drawn flexible models up to 838 mm (33 ft)
- Is 51 mm x 32 mm x 813 mm (2 in. x 1.25 in. x 32 in.); edge is bent for extra strength
- Designed to work in rocky ground and heavy draft conditions
- Will till to 305 mm (12 in.) deep
- Trip height of 279 mm (11 in.)
- 568-kg (1250-lb) trip force
- Excellent clearance to handle heavy trash
- 813-mm (32-in.) underframe
- 305-mm (12-in.) spacing
Operator’s manual storage container comes as standard equipment
Operator’s manual storage container
A 102-mm (4-in.) diameter container provides storage to give the operator easy access to the manual at the front of the machine. It is made out of a durable polyethylene and will keep the manual clean and dry in all weather conditions.
The container was designed exclusively for John Deere and the John Deere logo is shown on the lid.
Three-bar coil-tine harrow attachment available to finish off the field
Harrow
A handy three-bar coil-tine harrow attachment fits compactly behind the chisel plow.
There is 305 mm (12 in.) of fore-aft clearance between the bars plus vertical clearance of 305 mm (12 in.).
-
NOTE:
Use the harrow attachment only on machines equipped with sweeps; do not use with the
Tru-Depth™ standard.
| Type | Non-fold (integral) |
|---|
| Rigid frame | Option 1 2.44 to 6.1 m 8 to 20 ft |
|---|
| Rigid frame | Option 1 2.99 to 5.97 m 9.83 to 19.58 ft |
|---|
| Maximum depth | 30.5 cm 12 in. |
|---|
| Miles per hour | 8 to 11.3 km/h 5 to 7 mph |
|---|
| Horsepower per foot | Rigid and spring-reset standards: 14.7 to 24.5 kW/m 6 to 10 hp/ft Tru-Depth standards: 14.7 to 34.3 kW/m 6 to 14 hp/ft |
|---|
| Option 1 | Tractor 3-point hitch |
|---|
| Tubing | High strength, box beam steel cross members: 10.2×10.2 cm 4×4 in. Steel end tubes, welded construction: 5.1×10.2 cm 2×4 in. |
|||
|---|---|---|---|---|
| Fore-and-aft | 182.9 cm 72 in. |
|||
| Underframe clearance | Rigid and TruPosition™ standards: 71.1 cm 28 in. Tru-Depth: 81.3 cm 32 in. |
| Inches | 30.5 cm 12 in. |
|---|
| Option 1 | Spec 3.2×5.1×71.1 cm 1.5x2x28 in. Maximum operating depth 20.3 cm 8 in. Underframe clearance 71.1 cm 28 in. Spacing 30.5 cm 12 in. 40.6 cm 16 in. Rigid standard |
|||
|---|---|---|---|---|
| Option 2 | Spec 3.2×5.1×71.1 cm 1.25x2x28 in. Trip force 249.5 kg 550 lb Trip height 25.4 cm 10 in. Maximum operating depth 30.5 cm 12 in. Underframe clearance 71.1 cm 28 in. Spacing 30.5 cm 12 in. Standard: TruPosition |
|||
| Option 3 | Spec 5.1×3.2×81.3 cm 2×1.25×32 in. Trip force 567 kg 1,250 lb Trip height 27.9 cm 11 in. Maximum operating depth 30.5 cm 12 in. Underframe clearance 81.3 cm 32 in. Spacing 12, 16 Standard: Tru-Depth |
| Choices | Variety of sweeps, shovels, and chisel points |
|---|
| Stabilizer wheels | Option 1 Stabilizer wheel frames with 5.90 – 15 4PR implement tires (optional on 2.4-m [8-ft] base models, standard on 4.9-m [16-ft] base models) |
|---|
| Option 1 | Rank spacing 30.5 cm 12 in. Spike/coil dimensions 30.5 cm 12 in. 3-bar coil tine |
|---|
