NEW
5 Family Tractors
Manage tractor from anywhere with the help of JDLink™ compatible with 5 Series Tractors. No matter who is running the tractor, operator can view information such as idle time, fuel levels, and machine location. Analyze machine data to help find minor efficiency gains that can make major impacts on operation.
For more information about JDLink and John Deere Operation Center, visit the JohnDeere.com/PrecisionAg
The JDLink M Modem brings you the value of connectivity to machines in your operation regardless of brand, type, or age*. The M modem is easy-to-install and affordable while delivering valuable location information, machine performance and health data. When included with an optional John Deere display, you can also get agronomic (crop) data. All this data and information flows automatically to your John Deere Operations Center™ account where it is recorded and documented allowing you to measure and manage your operation’s activities better with informed data-based decisions.
Users of Property Center that have equipment paired with a modem will also receive key information such as machine diagnostic trouble codes, automated maintenance tracking, engine hours and fuel levels, John Deere dealer Connected Support service, and MUCH MORE!
When you connect your equipment and use the Equipment Mobile application, connected machines will show engine hours, fuel level, DEF level (if equipped), as well as maintenance tracking and alerts. Equipment Mobile will also provide much more information whether your equipment is connected or not such as is parts specific to your serial number, operator’s manuals, and much more!
Availability of the JDLink M Modem varies by country. Machine data detected by the modem varies by manufacturer and model.
If you simply wish to track the location of a machine, you only need battery power to the modem.
Any size and type of operation will appreciate the features in the Equipment Mobile application. Use the link for help documentation about the application.
A John Deere account is needed to use the Equipment Mobile app. Here’s a great overview of how to do it: How To Create A John Deere Account | John Deere (youtube.com)
Scan this QR code to get started with your John Deere account:
Here is a great overview to help explain what is the right digital tool for each type of customer: Right digital tool, right user (deere.com)
The John Deere Operations Center playlist is a great way to learn about available features on the web and mobile applications.
Pairing a modem to a machine is simple. Your John Deere dealer will put the modem in your John Deere account. The dealer can also complete pairing for you, or you can pair with these simple steps:
For more details and images, please review online help documentation about pairing JDLink modems.
To pair, your machine also needs to be in your John Deere account. There are easy ways to do it, and great help documents to assist:
To download the FREE Equipment Mobile app, visit your favorite app store or scan the following QR code:

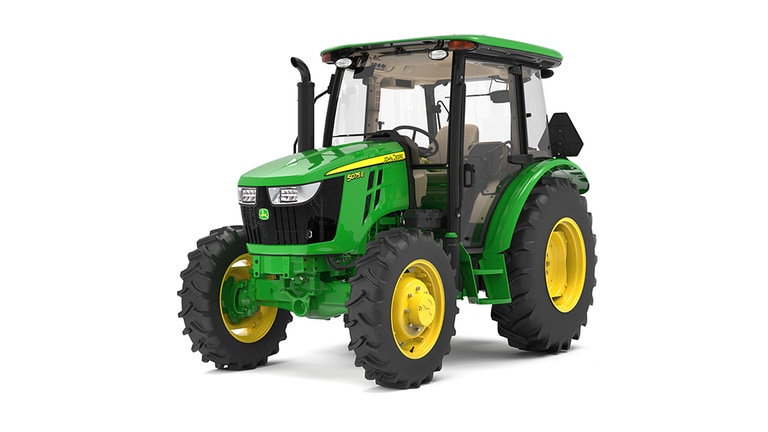

Premium cab offering
The power you need to tackle tasks around the operation now with a Premium cab option. Starting in Model Year 2024, 5090E and 5100E tractors can be ordered with a Premium cab from the factory that will increase your comfort whether you are working in the field or around your property.
Compare features offered in Standard Cab versus Premium Cab: |
||
Features |
Standard Cab |
Premium Cab |
Sunroof with sunshade |
— |
Exclusive |
USB and auxiliary audio port |
— |
Exclusive |
Rear window pull handle |
— |
Exclusive |
Leather wrapped steering wheel |
— |
Exclusive |
Instructional seat |
Extra |
X |
Bluetooth radio with microphone |
Extra |
X |
Instructional seat |
Extra |
X |
Bluetooth radio with microphone |
Extra |
X |
Front and rear LED work lights |
Optional |
X |
LED headlights (high and low beam) |
Extra |
X |
Right-hand door and steps |
Extra |
X |
Tilt and telescopic steering column |
X |
X |
Cloth seat with retractable seat belt |
Mechanical seat suspension |
Air ride seat suspension |
Air conditioning and heater |
X |
X |
Convenience power outlet |
X |
X |
LED headlights (high and low beam) |
Extra |
X |
Rear window wiper with washer |
Optional |
X |
Right-hand door and steps |
Field Kit Only |
X |
Cloth seat with retractable seat belt |
Mechanical seat suspension |
Air ride seat suspension |
Tilt and telescopic steering column |
X |
X |
Air conditioning and heater |
X |
X |
Convenience power outlet |
X |
X |
Two rear SCVs |
X |
X |
Three-position (on/off/auto) interior dome light |
X |
X |
Right-hand console ambient lighting |
X |
X |
Beverage holders |
X |
X |
Sun visor |
X |
X |
Rearview mirror |
X |
X |
Two mounting bosses for monitors or accessories on B-pillar |
X |
X |
Radio Preparation (with speakers and wiring) |
X |
X |
Front windshield wiper with washer |
X |
X |
Amp-style, three-socket power connector |
X |
X |
Stationary PTO enable switch |
X |
X |
Leather wrapped steering wheel
Right hand controls
Factory installed Bluetooth® radio
Factory installed instructional seat
Dual rear bale spear
Moving heavy hay bales through the field or using a larger 3-pt mount sprayer is no problem for the 5E tractors. The Model Year 2024 5090E, 5100E, and 5090EL tractors have a rear hitch lift capacity up to 4,600 lbs (2100 kg) which is over 30% more than previous models. Utilizing larger implements while maintaining the durability of the rear hitch can lead to significant efficiency gains on your operation.
Moving 3 bales at once
| Engine description | John Deere PowerTech™ 4045 PWL | |||
|---|---|---|---|---|
| Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
|||
| Rated engine power | At 2400 rpm: 67.1 kW 90 hp |
|||
| Maximum engine power | 68.6 kW 92 hp |
|||
| Rated PTO power (hp SAE) | At 2400 rpm: 56.0 kW 75 hp |
|||
| Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R |
|||
| Hydraulic pump rated output | 85.1 L/min 22.5 gpm |
|||
| Rear hitch category (SAE designation) | Category 2 |
| Description | John Deere PowerTech 4045 PWL | |||
|---|---|---|---|---|
| Engine type | 4045HLV76 | |||
| Engine family | NJDXL04.5315 | |||
| Rated speed | 2400 rpm | |||
| Aspiration | Turbocharged and Aftercooled | |||
| Cylinders liners | Wet sleeved | |||
| Emission level | Final Tier 4 | |||
| After treatment type | DOC/SCR | |||
| Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rated power | At 2400 rpm: 67.1 kW 90 hp |
|||
|---|---|---|---|---|
| Rated PTO power (hp SAE) | At 2400 rpm: 56.0 kW 75 hp |
|||
| Power boost | At 2200 rpm: 2 percent | |||
| Maximum engine power | 68.6 kW 92 hp |
|||
| Engine peak torque | At 1600 rpm: 347 Nm 255 lb-ft |
| Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R |
|||
|---|---|---|---|---|
| Reverser | Yes | |||
| Clutch; wet/dry | Wet | |||
| Creeper | Not available |
| Type | Open center | |||
|---|---|---|---|---|
| Pump rated output | 85.1 L/min 22.5 gpm |
|||
| Available flow at a single rear SCV | 60.1 L/min 15.9 gpm |
|||
| Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
|||
| Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
|||
| Joystick SCV control | Mechanical |
| Hitch draft control load sense type | Mechanical | |||
|---|---|---|---|---|
| Remote control valves available | Standard: Two Optional: Three |
|||
| Hitch category (SAE designation) | Category 2; convertible to 1 | |||
| Maximum lift capacity behind lift points | Standard: 2100 kg 4600 lb |
|||
| Sensing type | Top link |
| Drawbar category | Category 2 | |||
|---|---|---|---|---|
| Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg |
| Type | Standard: 540/540E Optional: 540/1000 |
|||
|---|---|---|---|---|
| Engine rpm (at rated PTO speeds) | 540 at 2400 rpm 540E at 1716 rpm 1000 at 2400 rpm |
|||
| PTO actuation | Electrohydraulic |
| Type | Flange | |||
|---|---|---|---|---|
| Final drive type | Inboard planetary | |||
| Differential controls | Mechanical (pedal) | |||
| Brakes, type and control | Hydraulic wet disc |
| Type | Mechanical Front Wheel Drive (MFWD) |
|---|
| Rear | MFWD: 18.4-30 R1 Bias | |||
|---|---|---|---|---|
| Wheel tread range | MFWD: front: 1340-1904 mm 52.8-75.0 in. |
|||
| Turning radius with brakes | MFWD: 4.36 m 14.3 ft |
|||
| Turning radius without brakes | MFWD: 3.54 m 11.6 ft |
| Alternator size | OOS: 90 amp Cab: 120 amp |
|||
|---|---|---|---|---|
| Battery options | 12 V | |||
| Working lights | Halogen | |||
| Type of bulb in headlight (Halogen, Zenon, LED) | Halogen | |||
| Type of bulb in beacon (Halogen, Zenon, LED) | Kit: Halogen |
| Rollover protective structure, OOS | Rigid – foldable – telescopic Foldable, two-post Platform – flat/straddle Straddle Gearshift location – console/floor Floor |
|||
|---|---|---|---|---|
| Seat | Standard: Mechanical Optional for Cab: Air Ride |
|||
| Instructional seat | Optional for Standard cab Included with Premium cab |
|||
| Display | Automotive-style light-emitting diode (LED) instrument cluster | |||
| Inner cab volume | 78 dBA |
| Wheelbase | 2350 mm 92.5 in. |
|||
|---|---|---|---|---|
| Overall length | 4042 mm 159.13 in. |
|||
| Approximate shipping weight, Open;Cab | OOS: 3300 kg 7275 lb Cab: 3700 kg 8150 lb |
| Fuel tank | OOS: 94.6 L 25 U.S. gal. Cab: 114 L/min 30 U.S. gal. |
|||
|---|---|---|---|---|
| Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
| Guidance | No | |||
|---|---|---|---|---|
| Telematic | JDLink™ |
| AutoTrac ready | No | |||
|---|---|---|---|---|
| ISOBUS ready | No | |||
| Country of manufacture | Saltillo, Mexico |
| Date collected | 1-Aug-2023 |
|---|
