New Equipment Implements and Attachments Box Blades John Deere BB20L Series

John Deere BB20L Series

NEW

John Deere BB20L Series

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • Fixed back plate
    • Fixed tailgate
    • iMatchTM compatible
    • Scarifier points
View More Specs
John Deere BB20L Series
Features
Specifications
Brochure

Fixed back plate is heavy duty for added rigidity

Strong formed upper edge Strong formed upper edge
#

The heavy-duty concave back plate, with a formed upper edge, provides added rigidity and strength for trouble-free performance.

Cutting edge is strategically positioned for a fine finish

BB Series Box Blade cutting edge is reversible BB Series Box Blade cutting edge is reversible
#

The BB Series Box Blade cutting edge ensures precise leveling and a fine finish. It is also reversible for twice the wear life.

Fixed tailgate helps in rough situations

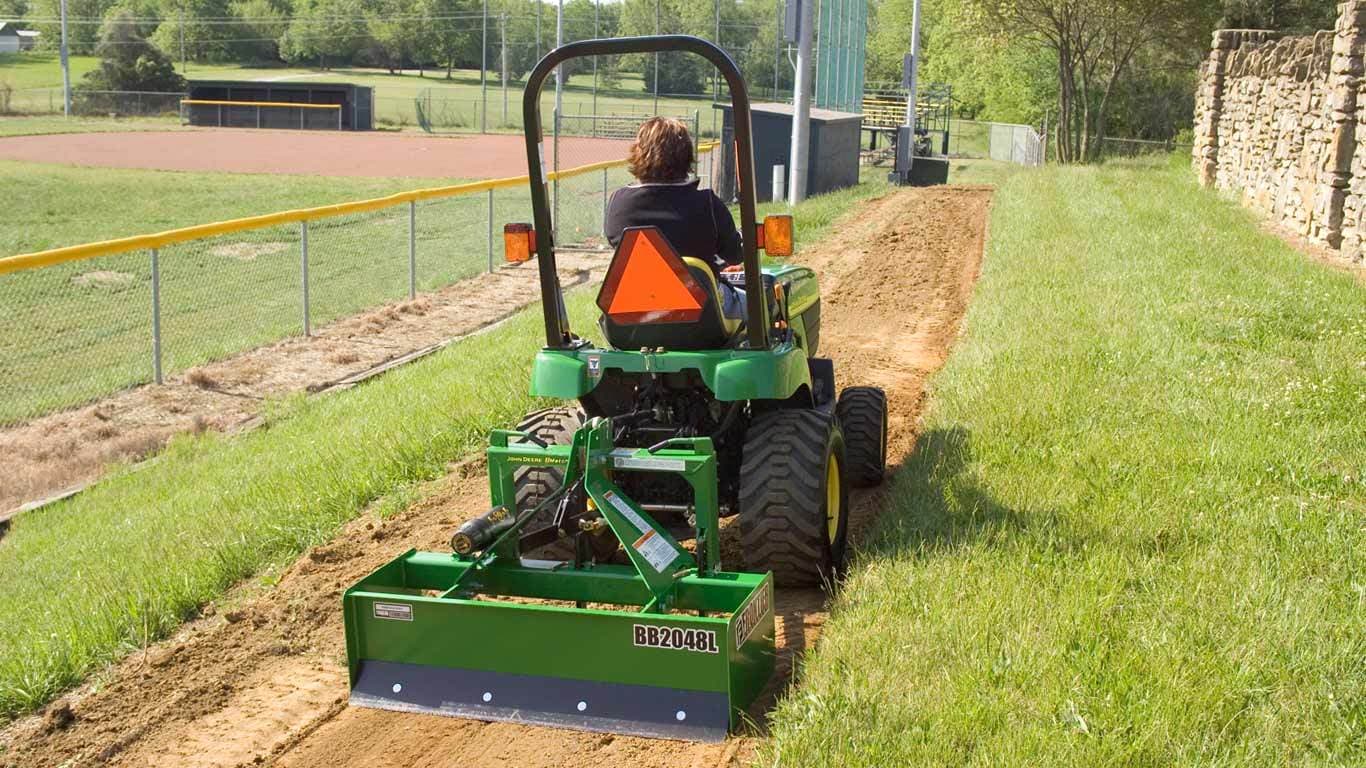

Model BB2048L shown Model BB2048L shown
#

The tailgates on the BB20 and BB20L Series Box Blades are fixed, giving the cutting edge extra power to slice through hard, compacted ground.

iMatch™ quick-hitch compatible for quick, efficient hookup

Innovative hitch system Innovative hitch system
#

The iMatch Category 1 quick-attach hitch system is an innovative device that converts a 3-point hitch to fixed hooks and makes attaching implements an easy connection.

Scarifier points and shanks are adjustable for a variety of ground conditions

Box blade points and shanks Box blade points and shanks
#

Frontier™ box blade implements feature replaceable hardened, points and shanks that are in position for chipping or deep digging.



The shanks also use a unique locking rod retention system, allowing quick and easy changes to the shank/point penetration level.

Working width 121.9 cm
48 in.
Unit height
Unit depth
Endplate thickness 1 cm
0.375 in.
Moldboard thickness 0.5 cm
0.1875 in.
Operating weight 124.7 kg
275 lb
Shipping 288.5 kg
636 lb
PTO Horsepower Max: 18.6 kW
25 hp
Compatibility Category 0, limited Category 1
iMatch™ compatible (Cat. 1)
Quick coupler (Cat. 2)
Capacity 0.19 m3
6.6 cu ft
Design Reinforced
Reversible Yes
Quantity Two
Size 1.27×15.24 cm
0.5×6 in.
Shank type 3 position with holes
Points Replaceable
Quantity Three
Tubular scarifier beam size 10.16×10.16×0.635 cm
4x4x0.25 in.
Beam reinforcement bar size 0.09×2.54 cm
0.375×1 in.
Type Fixed
Type Bolt on
Color JD Green
Configuration Two units per crate
Labor hours 0.5
Time period 1 year
Date collected
