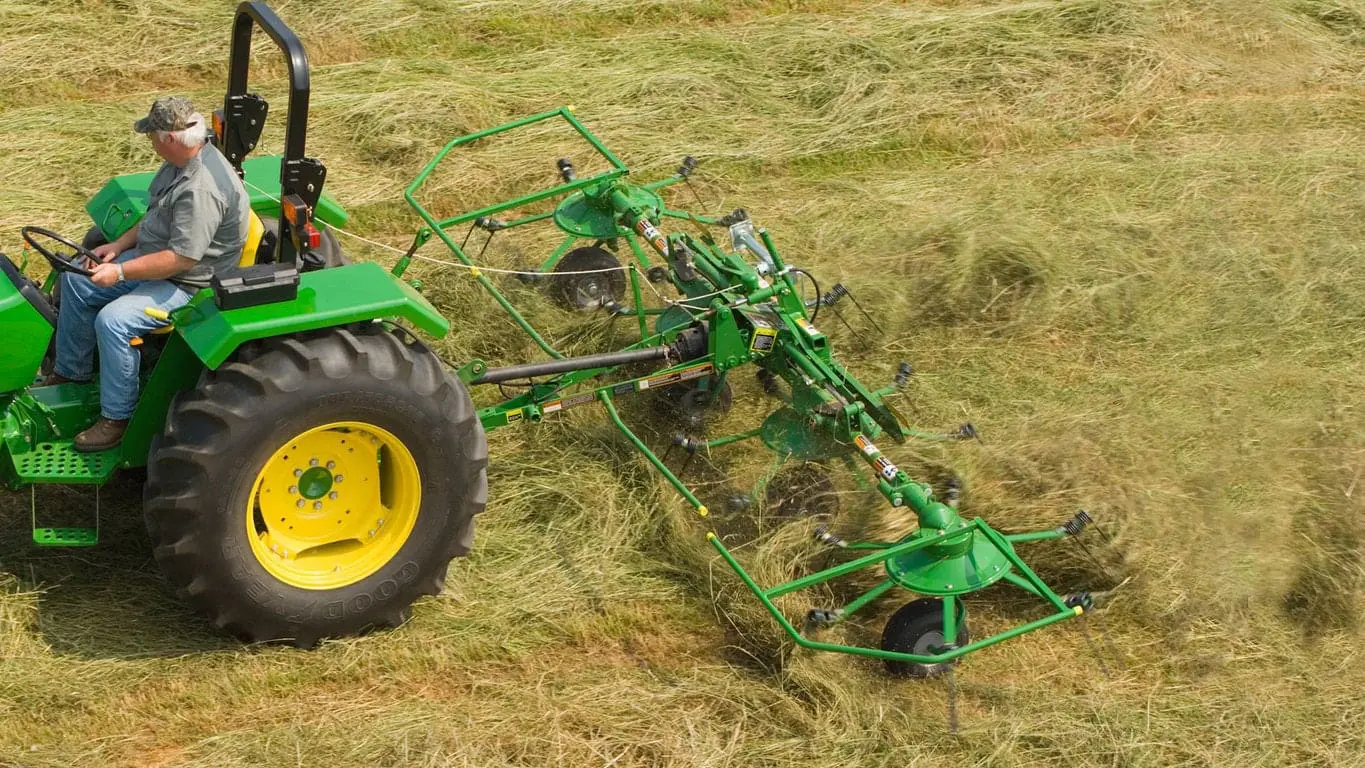

John Deere TD13 Series

NEW

John Deere TD13 Series

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • DigidriveTM drive system ensures maximum life
    • Hydraulic working angle adjustment
    • Durable Steel tines
    • Balloon tires operates smoothly on bumpy ground
View More Specs
John Deere TD13 Series
Features
Specifications
Brochure

Digidrive® drive system ensures maximum life

Digidrive system Digidrive system
#

The exclusive Digidrive rotor drive fingers on the TD13 Series Hay Tedder are made from forged, case-hardened, heat-treated steel for maximum life and smooth power transmission.



Digidrive is a trademark of Kuhn, S.A. Joint Stock Company.

Rotor adjustment

Hydraulic angle adjustment for easy transport Hydraulic angle adjustment for easy transport
#

The Frontier™ TD13 Series Hay Tedder comes standard with hydraulic angle adjustment, perfect for transporting the tedder to multiple fields.



It allows the operator to set the working angle of the tedder one time, and then quickly and easily go from the transport to the working position using the tractor hydraulics from the comfort of the seat.

Durable steel tines resist fatigue

Flexible steel for durability and dependability Flexible steel for durability and dependability

The TD13 Series Hay Tedder has flexible, steel tines that are heat treated for durability and highly resistant to fatigue.

Balloon tires operate smoothly, even over bumpy ground

Balloon-technology tires on Frontier™ TD13 Series Balloon-technology tires on Frontier™ TD13 Series

The TD13 Series Hay Tedder has large balloon tires that allow smoother operation over irregular ground.

Deflector aftermarket kits for BP1166 Bale Processors and TD1316 Hay Tedders

An aftermarket, field-installed wide deflector belt kit is available for feed bunk applications on the BP1166 Bale Processor.



An aftermarket, field-installed anti-wrap deflector kit helps to prevent hay from wrapping on the tine arms and rotor housings of the TD1316 Hay Tedder during use.



An aftermarket, field-installed wheel deflector kit helps prevent hay from being trapped by the tine arms of the TD1316 Hay Tedder during operation in light and/or fluffy hay applications.

Reduction gearbox for TD1316 Hay Tedders

Reduction gearbox conversion kit is great for heavy windrows or night windrow applications when using the TD1316 Hay Tedder.

Width in working position 5.4 m
17.7 ft
Tedding width 5.0 m
16.4 ft
Transport width 2.8 m
9.2 ft
Transport height 2.7 m
8.7 ft
Transport length 2.3 m
7.6 ft
Machine
Shipping 456 kg
1,005 lb
Minimum hp (kw) 14.9 L
20 hp
Hydraulic valves (SCVs) required One
Type Torque Limiter
rpm 540 rpm
Straight, right-hand, left-hand angles Standard
Type Drawbar
Quantity Four
Quantity per rotor Six
Type Round tubular
Size, in. (cm)
Height adjustment Hydraulic tilt
Angle adjustment
Working size 6 ply: 38×15 cm
15×6 in.
Transport size
Working type Balloon
Transport type
Transport lights
Safety chain Standard
Safety guards Standard
SMV Standard
Hydraulic vertical fold with hydraulic tilt Standard
Integrated transport frame
Labor hours 6
Time period 1 year
Date collected
