New Equipment Implements and Attachments Pallet Fork John Deere AP13G

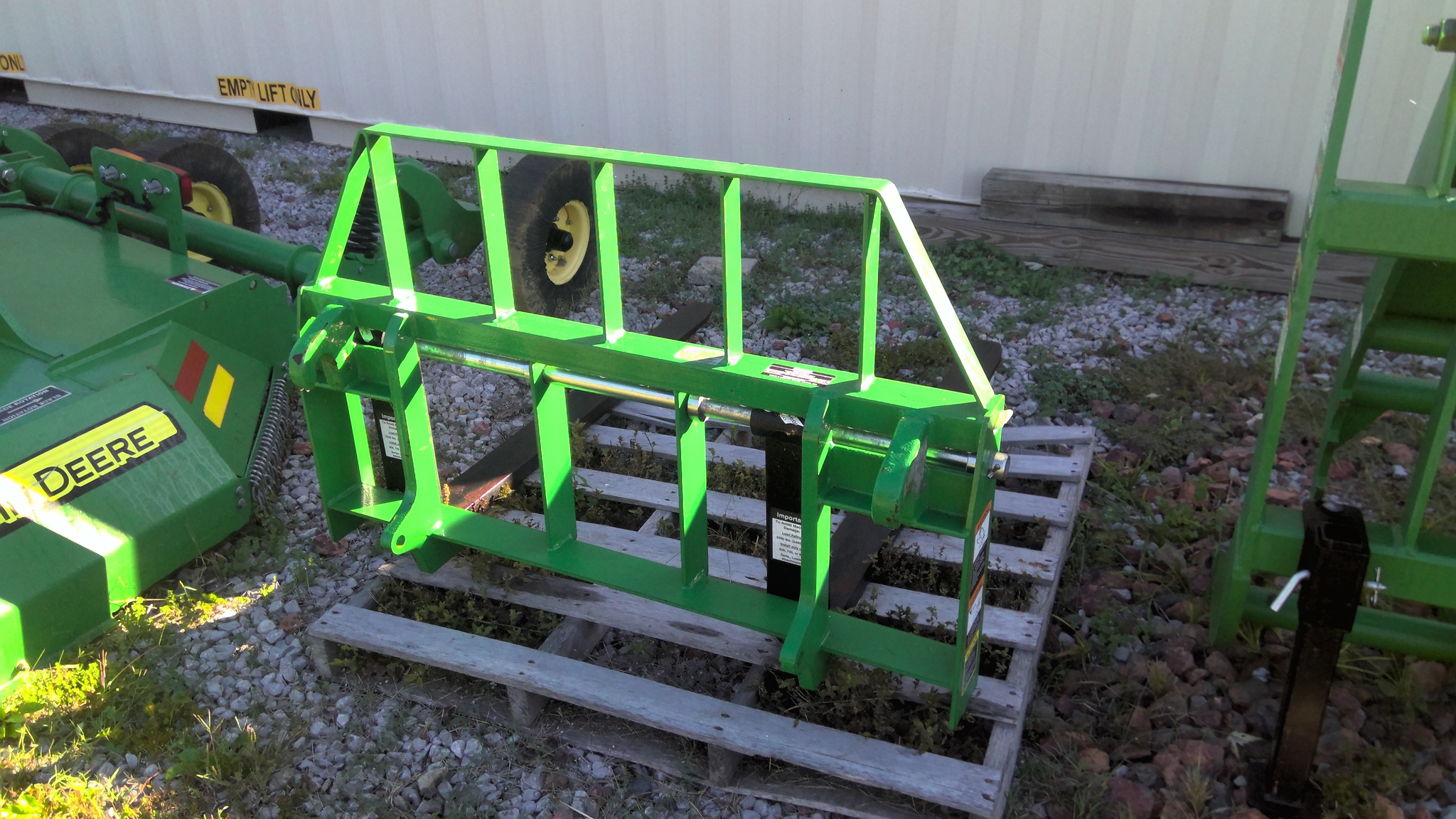

John Deere AP13G

NEW

John Deere AP13G

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • High tensile, heavy-gauge steel frame
    • Tines float while picking up and removing pallets on uneven terrain
    • Tines can be made rigid at any position using set screws
View More Specs
John Deere AP13G
Features
Specifications
Brochure

Steel frame is strong for tough jobs

AP12 and AP13 Series frames are built strong AP12 and AP13 Series frames are built strong
Frontier™ pallet forks handle heavy loads Frontier™ pallet forks handle heavy loads

The AP12 and AP13 Series Pallet Forks are built with welded components and high-tensile, heavy-gauge steel for years of dependable service.



The AP1240F model can hold up to 1701 kg (3750 lb), and the AP1240D, AP1240A, and AP1240G models can hold up to 2494.8 kg (5500 lb).



The AP1340F model can hold up to 1701 kg (3750 lb), and the AP1340D and AP1340G models can hold up to 2494.8 kg (5500 lb).



The AP12K model can hold up to 4535.9 kg (10,000 lb).

Fixed or floating tines available

AP12 Series fixed tine shown AP12 Series fixed tine shown
AP13 Series floating tine shown AP13 Series floating tine shown

Fixed-tine pallet forks on the AP12 Series keep the tines in a set position for consistent handling of pallets. Tines can be moved to any position simply by releasing the locking pin, so no tools are required.



Floating-tine pallet forks on the AP13 Series allow the tines to float while picking up and removing pallets on uneven terrain. Tines can be made rigid at any position along the shaft by tightening the set screws.

Current series style Global
Fork tines Type
Floating
Length
106.7 cm
42 in.
121.9 cm
48 in.
Overall height 81.3 cm
32 in.
Overall width 124.5 cm
49 in.
Overall length 132.1 cm
52 in.
Current series style Global
Operational With 42-inch tines: 199.6 kg
440 lb
With 48-inch tines: 208.7 kg
460 lb
Shipping With 42-inch tines: 217.7 kg
480 lb
With 48-inch tines: 226.8 kg
500 lb
Type Floating
Capacity 2494.8 kg
5500 lb
Section 40×130 mm
1.6×5.1 in.
Length 106.7 cm
42 in.
and 121.9 cm
48 in.
Labor hours 0.5
Time period 1 year
