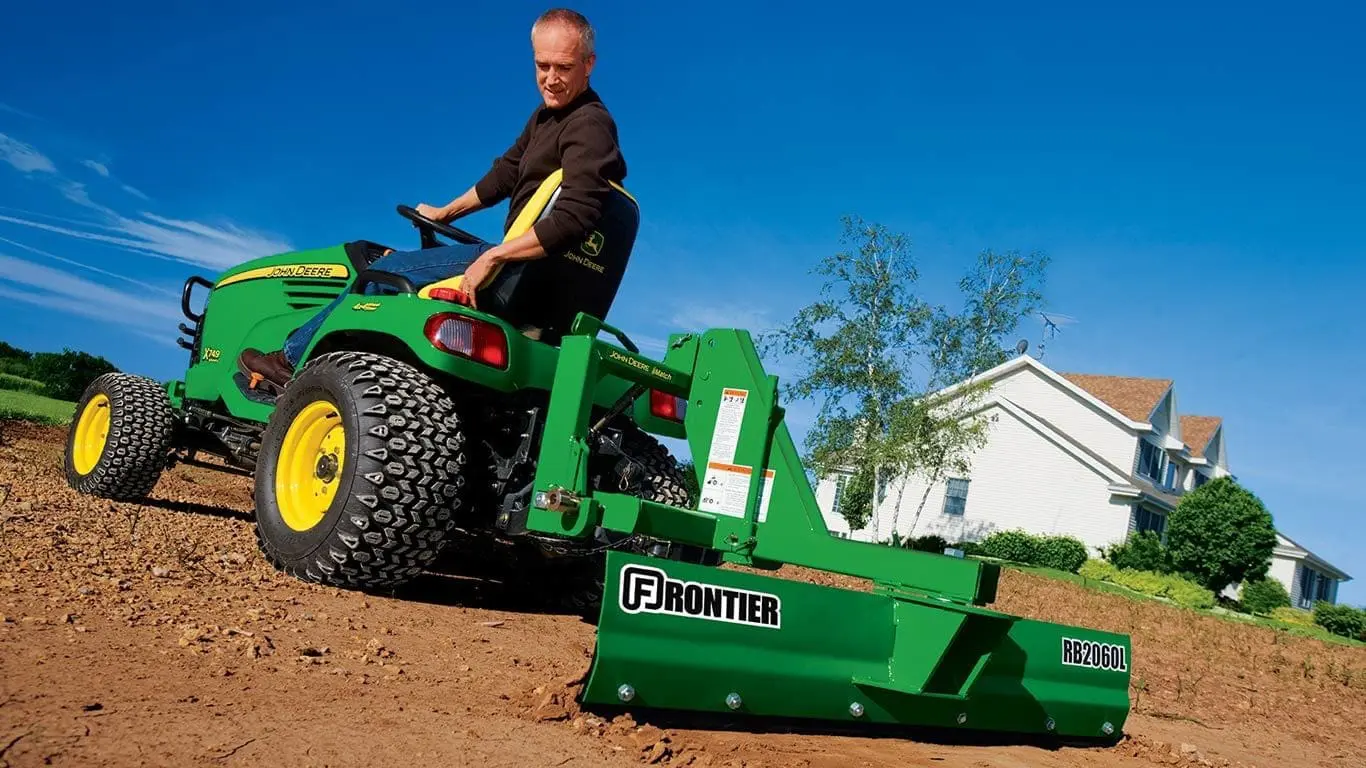

John Deere RB20L Series

NEW

John Deere RB20L Series

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • iMatchTM compatible
    • Manually adjustable angle
    • Reversible cutting edge
    • Optional skid shoes
View More Specs
John Deere RB20L Series
Features
Specifications
Brochure

Heavy mast ensures rigidity

Frame on the RB10L and RB20L Series Rear Blades Frame on the RB10L and RB20L Series Rear Blades

A heavy, welded mast and 4×4 steel frame deliver added strength and rigidity for Frontier™ RB10L and RB20L Series Rear Blades. The full-radius moldboard is professional grade to handle heavy loads.

Hitch attaches quickly and efficiently

Hitch is iMatch™ quick-hitch and Category 1 compatible Hitch is iMatch™ quick-hitch and Category 1 compatible

The RB10L and RB20L Series Rear Blades are iMatch quick-hitch compatible with Limited Category 1 hitches. This provides a quick, efficient hookup.

Manually adjustable angle for added precision

Turntable adjusts 360 degrees Turntable adjusts 360 degrees

The turntable allows a complete 360-degree turning radius for leveling perfection when using the RB10L and RB20L Series Rear Blades.


Adjust the angle of the blade to three different positions in forward and three positions in reverse. Manually adjusting the angle and offset allows the blade to adapt to a variety of soil conditions, creating a precise finish.

Reversible cutting edge for longer wear life

Frontier™ rear blade cutting edge Frontier™ rear blade cutting edge

All Frontier RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.

Optional skid shoes increase cutting edge life

Figure 1 Shown on RB24 Series Figure 1 Shown on RB24 Series

Skid shoes increase the life of the cutting edge on all RB Series Rear Blades and avoid damaging the work surface while cleaning corrals or plowing snow.



NOTE: Skid shoe style shown in image above used with RB2060, RB2072, and RB2084 models.



The skid shoe kits include one pair and allow the blade to ride on the shoes at a set height to allow the operator control of the blade depth.



The bundles listed below identify the rear blades they fit.

Width in working position 1.8 m
5 ft
Moldboard length 152.4 cm
60 in.
Moldboard height 27.9 cm
11 in.
Moldboard thickness 0.5 cm
0.1875 in.
Machine 70.3 kg
155 lb
Shipping per unit 91.2 kg
201 lb
PTO hp (kW) 25 hp
Max: 18.6 kW
Hydraulic offset kit (hoses and fittings included)
Pivot angle degrees 360 degree (angle)
Angle forward, number of positions 0, 15, 30 degrees each side
Angle reverse, number of positions 0, 15 degrees each side
Tilt positions/degrees
Offset position left or right
Type Limited Cat. 1 (aftermarket Cat. 0 lift pins available)
Quick hitch compatibility iMatch
Thickness 1.3 cm
0.5 in.
Height 15.2 cm
6 in.
Type Economy
Standard with machine Standard
Labor hours
Time period 1 year
Date collected
