New Equipment Implements and Attachments Rear Blades John Deere RB22 Series

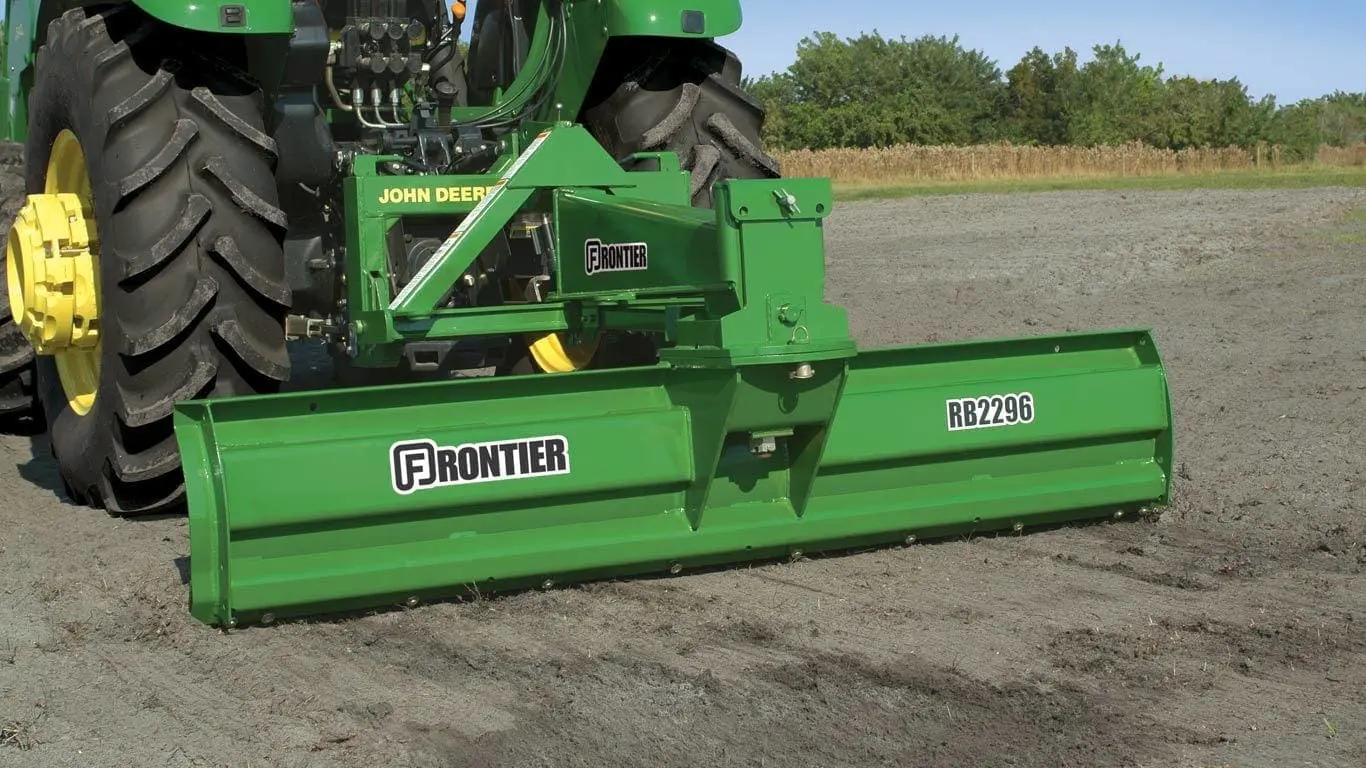

John Deere RB22 Series

NEW

John Deere RB22 Series

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • Manually adjustable angle
    • Reversible cutting edge for longer life
    • Optional end plates hold extra material
    • Optional skid shoes increase cutting edge life
View More Specs
John Deere RB22 Series
Features
Specifications
Brochure

Frame’s tubular steel is crafted for tough jobs

Tubular steel frame Tubular steel frame

The tough, tubular steel frame on Frontier™ RB Series Rear Blades is perfect for grading. Its full-radius moldboard more than handles landscaping needs.



NOTE: This applies to all RB Series Frame except the RBL Series.

Hitch attaches quickly and efficiently

Hitch on RB22 Series Rear Blade Hitch on RB22 Series Rear Blade

Frontier™ RB22 Series Rear Blades are Quik-Coupler compatible with Category 2 hitches, allowing a quick, efficient hookup.

Manually adjustable angle, tilt, and offset

Adjustable turntable for 360-degree turning radius Adjustable turntable for 360-degree turning radius

The turntable on the Frontier™ RB22, RB23, and RB24 Series Rear Blades allows a complete 360-degree turning radius for leveling perfection.



Manually adjusting the offset, angle, and tilt allows the blade to adapt to a variety of conditions and provides added protection and leveling perfection.

Reversible cutting edge for longer wear life

Frontier™ rear blade cutting edge Frontier™ rear blade cutting edge

All Frontier RB Series Rear Blade cutting edges are reversible, featuring bevels on both edges to give the blade twice the work life.

Optional end plate kit holds extra material

End plate option on RB24 Rear Blade End plate option on RB24 Rear Blade
End plate option on RB24 Rear Blade End plate option on RB24 Rear Blade
End plates on RB23 Rear Blade End plates on RB23 Rear Blade

End plates allow Frontier™ RB Series Rear Blades to hold more material while dragging it from place to place. This is ideal for leveling uneven terrain.



Each of the field conversion kits are for a pair of end plates and prevent the blades from windrowing material when backfilling or leveling.

Optional hydraulic offset

Make adjustments without leaving the tractor seat Make adjustments without leaving the tractor seat

With the optional hydraulic offset, adjustments can be made on the RB22 Series Rear Blades without leaving the tractor seat.

Optional skid shoes increase cutting edge life

Figure 1 Shown on RB24 Series Figure 1 Shown on RB24 Series

Skid shoes increase the life of the cutting edge on all RB Series Rear Blades and avoid damaging the work surface while cleaning corrals or plowing snow.



NOTE: Skid shoe style shown in image above used with RB2060, RB2072, and RB2084 models.



The skid shoe kits include one pair and allow the blade to ride on the shoes at a set height to allow the operator control of the blade depth.



The bundles listed below identify the rear blades they fit.

Hydraulic cylinder kit for rear blades

Hydraulic cylinder on RB23 Rear Blade Hydraulic cylinder on RB23 Rear Blade

The field-conversion hydraulic cylinder kit includes one cylinder. This kit allows the operator to position the blade without having to get off of the operator’s station.



NOTE: A rear selective control valve (SCV) is required.

Width in working position 2.4 m
8 ft
Moldboard length 243.8 cm
96 in.
Moldboard height 48.3 cm
19 in.
Moldboard thickness 0.6 cm
0.25 in.
Machine 350.2 kg
772 lb
Shipping per unit 376 kg
829 lb
PTO hp (kW) Maximum (2WD) 59.7 kW
80 hp
Maximum (4WD) 52.2 kW
70 hp
Hydraulic offset kit (hoses and fittings included) Optional hydraulic offset – up to one hydraulic remotes required
Pivot angle degrees 360 degree (angle)
Angle forward, number of positions Three positions, on each side up to 45 degree (angle)
Angle reverse, number of positions Three positions, on each side up to 45 degree (angle)
Tilt positions/degrees Three positions, up or down up to 23 degree (angle)
Offset position left or right 22.9 or 45.7 cm
9 or 18 in.
Type Cat. 2
Quick hitch compatibility ASAE Cat. 2 Quick coupler compatible
Thickness 1.3 cm
0.5 in.
Height 15.2 cm
6 in.
Type Medium plus
Standard with machine Yes
Labor hours
Time period One year
