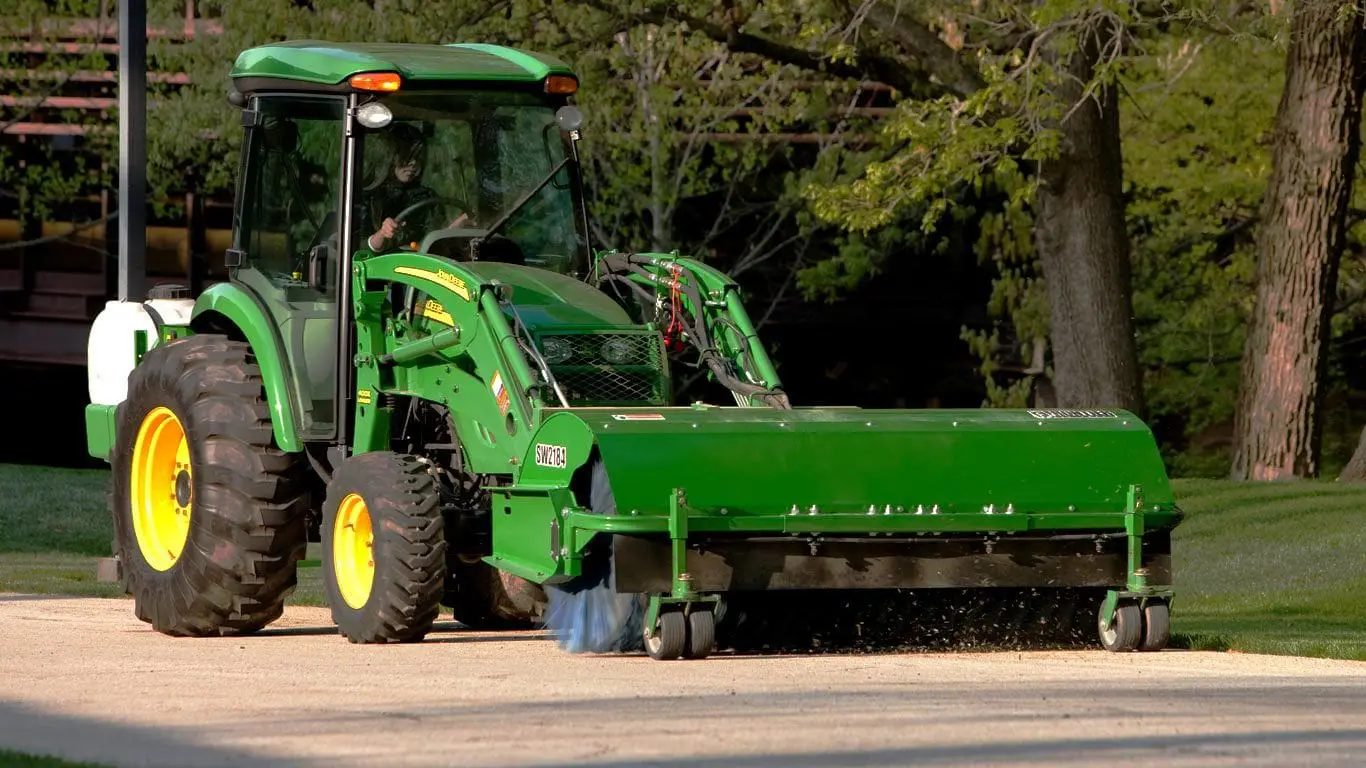

New Equipment Implements and Attachments Rotary Brooms John Deere SW21 Series

John Deere SW21 Series

NEW

John Deere SW21 Series

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • Angling degree range
    • Brush diameter is 32 inches for big jobs
    • Optional dust suppression system
    • Optional gauge wheel kit for setting height
View More Specs
John Deere SW21 Series
Features
Specifications
Brochure

Angling degree range

Angle to the left or right Angle to the left or right

The loader-mount hydraulic rotary broom has an angling range from 0 to 23 degrees both left and right. Setting the angle allows for the windrowing of material off of surfaces.



NOTE: Operators can mount optional gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

Brush diameter is 83 cm (32 in.) for large jobs

Brush is large enough for tough jobs Brush is large enough for tough jobs

The 83-cm (32-in.) diameter brush is large enough for the toughest jobs.



NOTE: Operators can mount optional gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

Optional dust suppression system

SW21 Series dust suppression system SW21 Series dust suppression system
227-L (60-gal.) tank 227-L (60-gal.) tank

The optional dust suppression system consists of a 227-L (60-gal.) tank supplying water up the nozzles that are positioned in the front of the broom.



The nozzles are easily controlled by a toggle switch located by the height hitch lever.



NOTE: Requires the poly and steel deflector kit. Compatible with lawn dethatching kit.

Optional gauge wheel kit for setting surface height of broom

For setting surface height of broom (shown with dethatching kit installed) For setting surface height of broom (shown with dethatching kit installed)
Gauge wheels shown in rear park stand mounting tubes Gauge wheels shown in rear park stand mounting tubes

An optional pair of gauge wheels are available for setting the height of the broom for limited surface contact. This ensures easy operation when sweeping surfaces or dethatching lawns.



It includes two pairs of 20.3-cm (8-in.) diameter by 8.9-cm (3.5-in.) wide solid wheels, mounting brackets, and hardware.



Operators can mount gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.

Dust deflector for SW21 Series Loader-Mount Rotary Brooms

A steel and rubber dust deflector kit directs material downward when using the SW21 Series Loader-Mount Rotary Brooms.

Dust suppression kit for SW21 Series Loader-Mount Rotary Brooms

The dust suppression kit includes 227-L (60-gal.) water tank, electric pump, nozzles, hoses and fittings, electrical harness with switch, and installation instructions for SW21 Series Loader-Mount Rotary Brooms.



NOTE: Requires the steel/rubber dust deflector kit.

Gauge wheel kit for SW21 Series Loader-Mount Rotary Brooms

Gauge wheels with dethatching and dust suppression kit installed Gauge wheels with dethatching and dust suppression kit installed

The gauge wheel kit for SW21 Series Loader-Mount Rotary Brooms includes two pairs of 20.3-cm (8-in.) diameter by 8.9-cm (3.5-in.) wide solid wheels, mounting brackets, and hardware.



Operators can mount gauge wheels in rear parking stand tubes (closest to loader) if front dethatching bracket is not installed.



NOTE: By mounting wheels in front of the brush with the dethatching bracket installed, better control of ground pressure can be achieved.

Lawn dethatching kit for SW21 Series Loader-Mount Rotary Brooms

Lawn dethatching kit components Lawn dethatching kit components
#

The lawn dethatching kit for SW21 Series Loader-Mount Rotary Brooms improves control of ground pressure when dethatching and performing general sweeping by moving the gauge wheels in front of and closer to the brush. The kit includes support components, hardware, and installation instructions. The gauge wheel kit is required and sold separately. It is compatible with the dust suppression kit.

Wafer kit for SW21 Series Loader-Mount Rotary Brooms

The 50/50 poly and steel wafer brush replacement kit for the SW2160, SW2172, and SW2184 Loader-Mount Rotary Brooms includes the required quantity of wafers to replace the entire brush.

Machine length 175 cm
69 in.
Machine width 244 cm
96 in.
Power pack width 97 cm
38 in.
Machine height 87 cm
34.25 in.
Power pack height 132 cm
52 in.
Machine operating 417 kg
920 lb
Power pack operating 243 kg
535 lb
Machine shipping 561 kg
1237 lb
Power pack shipping 243 kg
535 lb
PTO minimum horsepower 26.1 kW
35 hp
PTO, rpm 540 rpm
Loader, current John Deere series 400
Standard bristle materials Diameter
81 cm
32 in.
Number of brush wafers
46
Poly
Optional bristle material Diameter
81 cm
32 in.
Number of brush wafers
46
Combination (poly/wire)
Working width 213.36 cm
84 in.
Working width at max angle 195.58 cm
77 in.
Brush speed, rpm 200 rpm
Angling range degrees, left, center, right 23, 0, 23 degree (angle)
Shear pin protection Standard
Angling method Hydraulic
Standard Optional
Material Solid
Location, front, rear Front
Size, diameter 89×254 mm
3.5×10 in.
Adjustable height range Total: 190.5 mm
7.5 in.
Underground level: 63.5 mm
2.5 in.
Quantity
Operating pressure 207 bar
3000 psi
Flow required at operating pressure 61 L/min
16 gpm
Power pack reservoir 57 L
15 gal.
System capacity 64 L
17 gal.
Hood thickness 0.19 cm
0.0747 in.
Side frame construction 0.48 cm
0.1875 in.
Parking stands standard with unit, quantity Four
Hydraulic protection (relief valve) Standard
Dust deflector Optional
Dust suppression system (60-gal. water tank) Optional
Brackets for de-icer optional system Standard
Configuration Wood crate
Units per crate One
Labor hours (with power pack) 0.5 hours
with power pack: 0-2.5 hours
Time period (machine) 1 year
