New Equipment Implements and Attachments Rotary Tillers John Deere RT22 Series

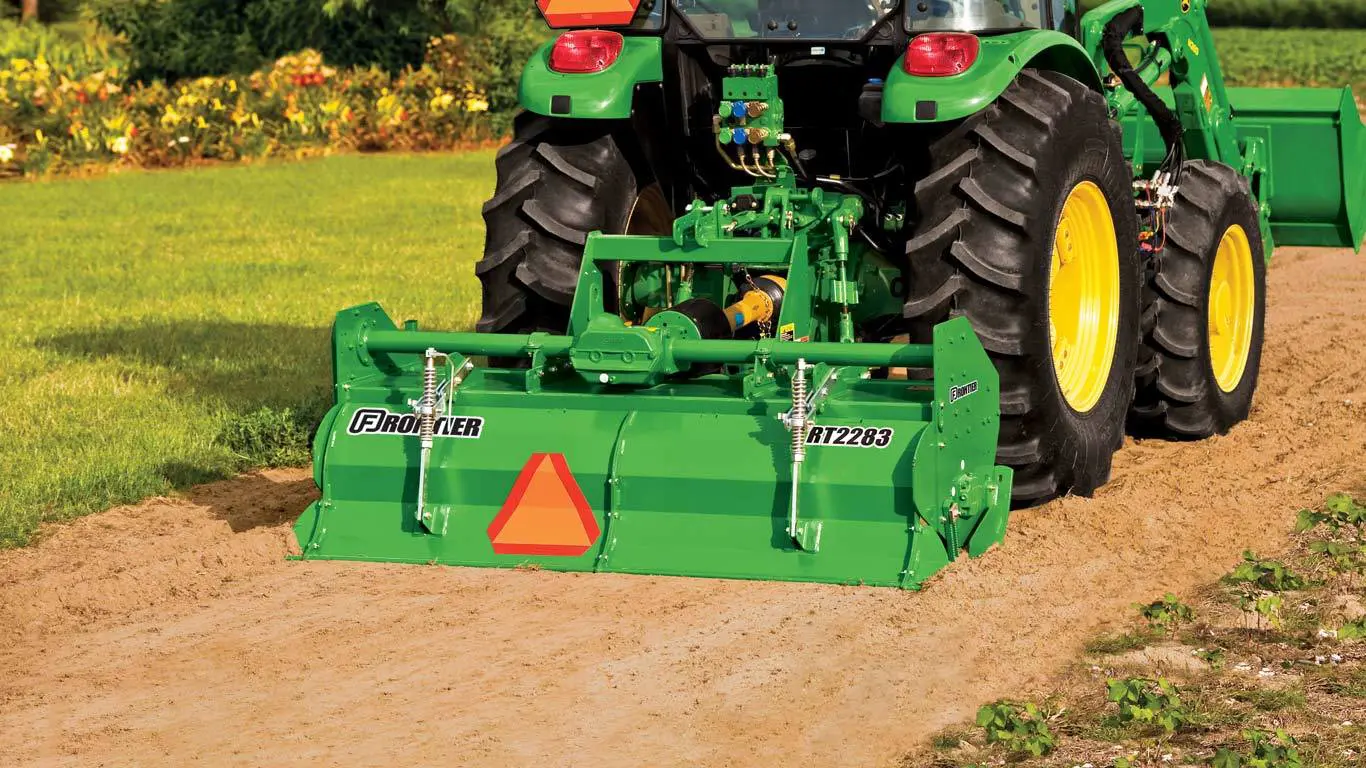

John Deere RT22 Series

NEW

John Deere RT22 Series

Local Pickup Only
John Deere Financial | Apply Today
Get A Quote
Key Features
    • Heavy-duty wear shields for added gear case protection
    • Rotor is helical shaped for higher efficiency
    • Skid shoes control depth
    • Category 2 quick hitch compatible
View More Specs
John Deere RT22 Series
Features
Specifications
Brochure

Cage roller adjustment for firming action is easy

Ideal for controlling wind erosion Ideal for controlling wind erosion

The hand crank makes adjusting the depth of the roller easy on the RT22 and RT23 Series Rotary Tillers. Use a lower setting for more firming action, ideal for controlling wind erosion.



The RT22 and RT23 Series have an optional hydraulic cage roller adjustment kit available to allow for depth adjustments without leaving the tractor seat.

Heavy-duty wear shields for added gearcase protection

Wear shields protect gearcase Wear shields protect gearcase

The gearcase is protected from abrasion and premature wear by the heavy-duty wear shields.

Rotor is helical shaped for higher efficiency

Helical shape increases efficiency Helical shape increases efficiency

The helical-shaped rotor decreases horsepower required to drive units. They are designed so they enter the field at different times for more efficiency.

Skid shoes control depth

Skid shoe height adjusts easily Skid shoe height adjusts easily

Easily adjust the working depth by adjusting the height of the skids with the adjustment bracket.



If the rotary tiller is equipped with the optional cage roller, the unit will still be equipped with skid shoes for wear protection.

Hitch is Quick-Coupler compatible for easy hookup

Hitch attachment is easy and fast Hitch attachment is easy and fast

Implement-to-tractor hookup is simple with the Quick-Coupler Category 2 compatibility.

Working width 210.8 cm
83 in.
Outside to outside width 223.4 cm
88 in.
Operating with skid shoes 779.7 kg
1,719 lb
Operating with cage roller
PTO speed rpm 540 rpm
Minimum horsepower 45 kW
60 hp
Maximum horsepower 75 kW
100 hp
Type Multi-stage
Oil cooler
Type Gear
Chain, ASAE
3-point compatible Category 2
iMatch™ compatible (Cat. 1)
Quick coupler (Cat. 2) Yes
Quick coupler (Cat. 3)
Adjustable offset
Clutch type Friction
Shape L-shape
Flanges (quantity) Eight
Blades (quantity) Six
Type Skid shoes
Maximum working depth 27 cm
10.6 in.
Rear door support Chain
Parking stand Standard
Markings Standard
Type Medium
Labor hours
Time period 1 year
Date collected
