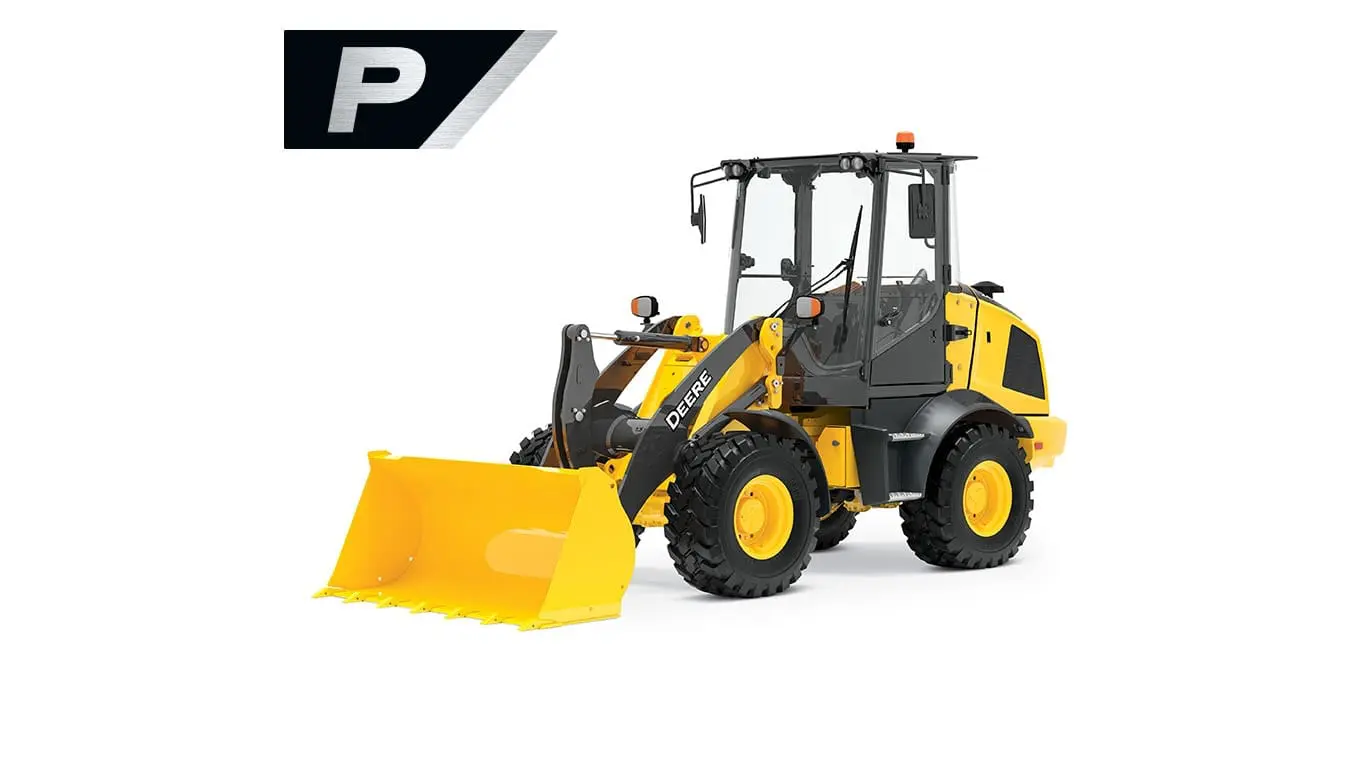

New Equipment Compact Construction Equipment Compact Wheel Loaders 244 P-Tier

244 P-Tier

NEW

244 P-Tier

Local Pickup Only
0% For 60 Months | Apply Today
Get A Quote
Key Features
    • Net Power: 52 kW (71 hp) at 2,400 rpm
    • Operating Weight: 5560 kg (12,258 lb.)
    • Bucket Capacity: 0.8–1.1 m3 (1.0–1.4 cu. yd.)
View More Specs
244 P-Tier
Features
Specifications
Brochure

Turn Things Around

  • Industry-exclusive Articulation Plus™ steering system combines 30 degrees of articulation with 10 additional degrees of rear-wheel steer. Reduced articulation angle design delivers tighter turns that are more stable, especially with large loads, than comparatively sized loaders without Articulation Plus.

On the Level

  • Loader arm and coupler design improves the lifting path to near parallel — for better load-carrying capability than previous models. This keeps the load more level from ground to truck-bed height and helps the operator focus on the task instead of on making manual adjustments.

Fast Getaway

  • With a standard top speed of over 23 mph, the 244 P-Tier can make some pretty quick moves on and between jobsites.

Smooth Moves

  • Load-sensing AutoShift powertrain technology eliminates productivity-interrupting manual shifts between gear ranges while providing smooth direction changes.

Control and Command

  • Low-effort joystick controls boom and bucket, forward-neutral-reverse (F-N-R), and differential lock. Standard mini-joystick controls auxiliary hydraulic functions including optional high flow. Adjustable-height monitor lets operators keep close watch on vital machine functions.

Enjoy the Ride

  • Standard ride control cushions the boom during travel over rough and uneven terrain, reducing material spillage from the bucket and minimizing site cleanup.
Engine Manufacturer Yanmar
Engine Model 4TNV98CT
Displacement, ltr (Inches³) 3.3 (203)
Rated Speed, rpm 2400
Engine Output – Net, kW (hp) 52 (71)
Torque, Nm (lbf / ft) 280 (206)
Transmission Type Hydrostatic
Front Differential Type Locking
Rear Differential Type Open
Tire size – Standard 365 / 70 R18
Service Brake – Type Wet Disc & Drum
Service Brake – Actuation Hydraulic
Parking Brake – Type Wet Disc
Height – Over Cab, mm (ft/in) 2750 (9 ft )
Wheelbase, mm (ft/in) 2150 (7 ft 1 in)
Ground clearance, mm (inches) 285 (11)
Width Over tires – Std, mm (ft/in) 1920 (6 ft 4 in)
Height – Pivot Pin, mm (ft/in) 3220 (10 ft 7 in)
Reach – At 2130mm 45° Dump, mm (ft/in) 1520 (5 ft )
Fuel Tank, ltr (gallons (US)) 90 (23.8)
Hydraulic Tank, ltr (gallons (US)) 66 (17.4)
Heaped Capacity, m³ (yd³) 0.8 (1)
Breakout – Bucket, kgf (lbf) 4895 (10792)
Ride Control System Yes
Pump Type Gear
Pump Flow – 1, lt/min (gallons (US) / min) 70 (18)
System Pressure, bar (PSI) 230 (3335)
Operating Weight, kg (lbs) 5560 (12258)
View Brochure
*Offer valid on qualifying purchases made between 09 September 2025 to 31 December 2025. Down payment may be required. Subject to approved installment credit with John Deere Financial, some restrictions apply, so see your dealer for complete details and other financing options. Prices and models may vary by dealer. Offer available on new equipment and in the U.S. only. Prices and savings in U.S. dollars.

Additional attachments and options available in-store.

John Deere Rewards discounts can be applied to in-store purchases.

Finance calculator is for estimation only. Taxes, fees, set up and delivery may increase your monthly payment. Same-day pickup not guaranteed for equipment orders.

The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Product features subject to change. Images of options may not accurately represent products purchased. Call your local TriGreen dealership for details.
