NEW
22-hp (16.4-kW) engine
A 22-hp (16.4-kW) V-twin engine has plenty of power and torque to handle tough mowing, mulching, and bagging:
Convenient fuel filler opening
John Deere Easy Change 30-second oil change system
The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.
The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.
The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:
Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.
Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.
Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.
Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.
Solid one-piece frame
Solid one-piece frame
The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:
Front axle and wheel spindle
The front axle is constructed of solid cast iron that will not bend:
Front bumper
Front bumper
The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.
Rear CargO Mount points
Front CargO Mount points at the top of the dashboard
Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount points
The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
S140 Tractor with front blade, weights, and tire chains
S160 Tractor with snow blower, weather enclosure, weights, and tire chains
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
Two-pedal speed/direction controls
Forward speed control pedal in use
A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:
Hydrostatic transmission
Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
Comfortable operator station (S130 shown)
Comfortable operator station (S130 shown)
The operator station is designed for operator comfort and easy operation:
Steering wheel and dash (S130 shown)
Wide footrest with debris-removal channels
Controls are easy to see and use:
Wide footrest areas with non-slip, anti-vibration floor mats are provided for operator comfort:
Comfortable seat
Easily adjusted seat
Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:
Seat springs give a smoother ride
Seat tilted forward
Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.
Storage compartment and beverage holder
Storage compartment and beverage holder, located on the right-side fender, are conveniently located and easy to use.
NOTE: A storage compartment cover is standard on S120, S130, S160, S170, and S180 Tractors and optional on the S100, S110, and S140.
Fender flares
Fender flares included on the S130 Tractor cover the tires more completely and add style to the tractor.

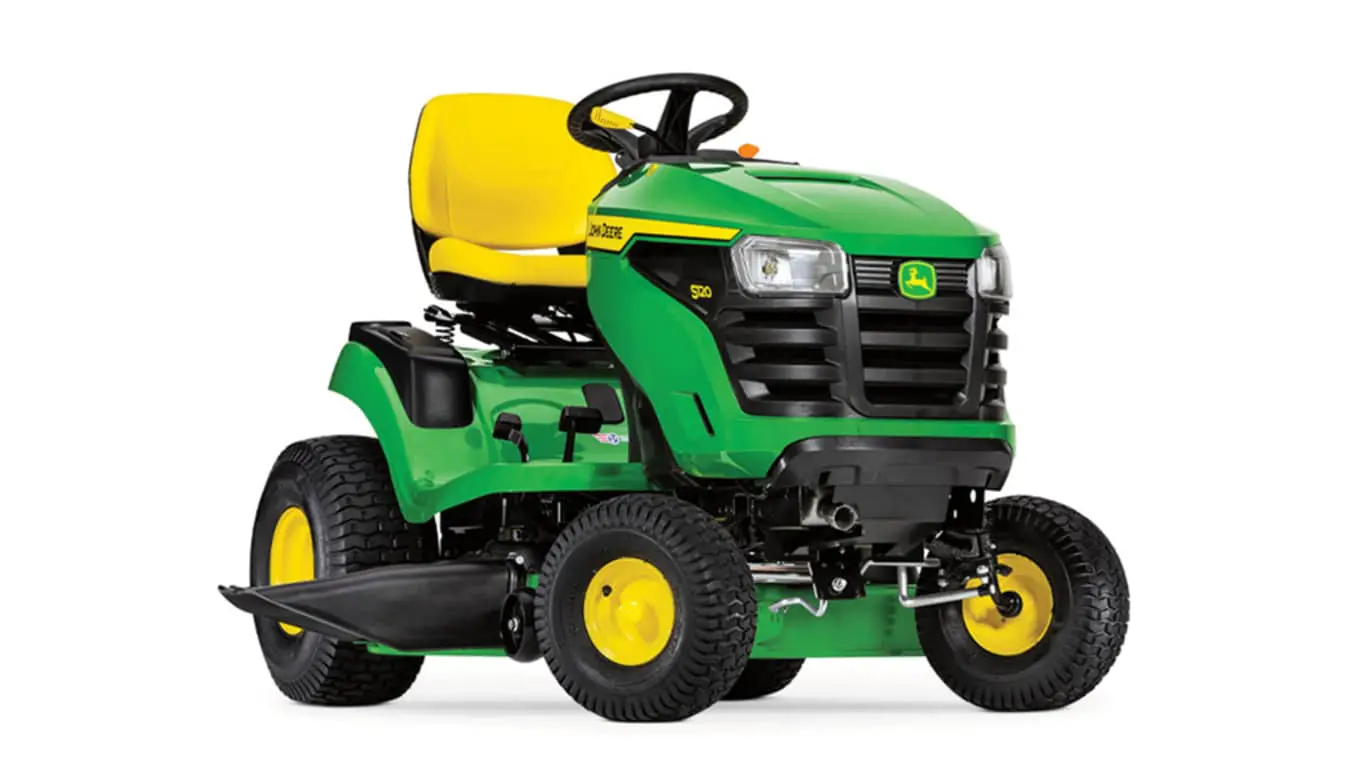

S120 Tractor
Steering wheel and controls on S120
The contoured dash has clean, attractive styling:
Easy-read fuel gauge
Convenient fuel filler opening
The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:
Two-pedal speed/direction controls
Side-by-side foot pedals
Side-by-side foot pedals control the speed and direction of travel:
Cruise control lever
Cruise control is available on the S120, S130, S160, S170, and the S180:
Mower deck height adjustment lever
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
Brake/parking brake pedal
Parking brake lever
The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.
PTO engagement lever
The mower deck is engaged with the easy-to-see and easy-to-use yellow lever above the dashboard. Its placement on the right side leaves a lot of room on the left, the entry side of the tractor, for the operator to get on and off the tractor.
RIO switch
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.
Example quick-response (QR) code label
John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.
Upper portion of owner support web page
Lower portion of owner support web page
The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.
The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.
One-piece hood is easy to open (shown on S110 model)
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
John Deere Easy Change™ 30-second oil change system
Seat tilted up for easy access to fuel-fill opening
The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.
The seat tilts up and out of the way to make adding fuel easy.
One-piece hood with quality headlights
X350 Tractor
Z370R Electric ZTrak™ Mower
Keep your John Deere equipment running its best with the John Deere Equipment Mobile App. Download the app from the mobile device’s app store, then add all your John Deere equipment by scanning the serial number bar codes. Once your equipment is added, you can access all your product’s model, serial number, and model year information in one place. The app also provides maintenance, parts, and support resources that are specific to your serial number(s).
Use Equipment Mobile to find the right parts
It is important to get the right parts the first time. When you load your equipment list, Equipment Mobile provides parts information specific to your serial number(s). This is helpful to you and your John Deere dealer, as some parts can vary by serial number range.
Maintenance plan screen
Maintenance parts and notes screen
Equipment Mobile includes comprehensive maintenance plans for each piece of your equipment. The maintenance plan screen keeps track of completed tasks, provides a place for your notes, and provides parts listings. You can also share your maintenance plan with your dealership, enabling tasks completed by the dealer to be included.
A machine’s operator’s manual is a go-to resource that is available in Equipment Mobile. You can search, view, and download a copy. The operator’s manual is specific to the serial number(s) of your equipment.
Smart Connector
BUC10537 smart connector, wiring harness, and twist ties
A smart connector links the mower to the Equipment Mobile App and transmits vehicle information via Bluetooth® wireless technology to provide:
Optional BUC11960 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the Equipment Mobile device is in range of a mower with a BUC11960 smart connector.
One end of the wiring harness plugs into the back of the fuel gauge. The other ends plug into the smart connector and the tractor's wiring harness. Z500 ZTrak Mowers come with a dedicated connectivity connector, so the new wire harness is not needed.
Optional BUC10537 smart connector is for use with:
Hours, fuel level, key switch status, and battery level are updated whenever the mower’s key is turned on and the Equipment Mobile device is in range of a mower with a BUC10537 smart connector. The X350R Tractor does not report exact fuel level, it only indicates if the mower is low on fuel.
One end of the wiring harness plugs into the back of a Select Series X300 or X500 Tractor instrument cluster. The other ends plug into the smart connector and the tractor's wiring harness.
The Z370R and Z380R Electric ZTrak Mowers include the smart connector in base equipment.
On Electric ZTrak Mowers the battery level, charging status, and hours are transmitted when the Equipment Mobile device is in range of the mower, and the mower is on or actively charging. Equipment Mobile can also update an Electric ZTrak Mower’s controller software.
A smart connector requires the Equipment Mobile App. The John Deere Equipment Mobile App can be found in the mobile device’s app store.
Bluetooth is a trademark of Bluetooth SIG, Inc.
42-in. (107-cm) Edge cutting system
The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:
The 42-in. (107-cm) Edge Mower Deck is a two-spindle design with heavy-duty characteristics:
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy:
StarLock blade design
The StarLock blade design keeps the blade bolt at the correct torque for easy removal.
Optional blades for difficult mulching or bagging conditions are available.
6.5-bu (229-L) hopper and chute on an S100
A cut-and-throw, 6.5-bu (229-L) bagger is sold separately and comes with bagging blades. Special bagging blades are not required but they can enhance performance.
The bagger kit provides an efficient means of collecting grass clippings and leaves. It can be set up without tools in minutes and has easy-to-empty bags.
| Engine power | 22 hp 16.4 kW |
|||
|---|---|---|---|---|
| Oil change | John Deere Easy Change™ 30-second oil change system | |||
| Engine manufacturer/model | 44N677 (M44) | |||
| Transaxle type | TLT200 hydrostatic, two-wheel drive | |||
| Transaxle control | Side-by-side pedals | |||
| Rear tires | 20x8-8 | |||
| Lift system type | Spring-assisted hand-grip lever | |||
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| U.S. warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Power | 22 hp 16.4 kW |
|||
|---|---|---|---|---|
| Displacement | 44.2 cu in. 724 cm |
|||
| Manufacturer/model | 44N677 (M44) | |||
| Type | Overhead valve, full-pressure lube, oil filter | |||
| Cylinders | V-twin | |||
| Governor | Mechanical | |||
| Choke/speed control | Single lever with spring-return on choke | |||
| Cooling method | Air | |||
| Air cleaner | Cartridge | |||
| Oil change | John Deere Easy Change 30-second oil change system |
| Type | Gasoline | |||
|---|---|---|---|---|
| Fuel delivery | Pulse pump and carburetor | |||
| Fuel gauge | Easy-read on dash | |||
| Fuel tank location | Rear | |||
| Fuel fill opening | Center, 1.75 in. 4.45 cm |
|||
| Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Battery | 12 V 300 CCA |
|||
|---|---|---|---|---|
| Charging system | Regulated, 8 amp | |||
| Engine starter | Bendix type | |||
| Hour meter | Yes | |||
| Headlights | Two standard, incandescent | |||
| Taillights or reflector | No | |||
| Backup lights | No | |||
| Rear work lights | No | |||
| 12-V outlet | No |
| Type | Hydrostatic, 2-wheel drive | |||
|---|---|---|---|---|
| Control | Side-by-side pedals | |||
| Cruise control | Standard | |||
| Oil cooler | Fins and fan on transaxle | |||
| Oil filter | Yes, not serviceable | |||
| Differential lock | No | |||
| Forward speed | 0-5.5 mph 0-8.9 km/h |
|||
| Reverse speed | 0-3.2 mph 0-5.2 km/h |
|||
| Brakes | Internal wet disk |
| Frame | Full-length welded steel | |||
|---|---|---|---|---|
| Primer/paint | E-coat/powder | |||
| Weight bracket | Optional rear | |||
| Receiver hitch | No | |||
| Front axle | Cast-iron front axle, powdered-metal front wheel bushings | |||
| Spindle bushings | No | |||
| Front tires | 15x6-6 | |||
| Rear tires | 20x8-8 | |||
| Hood material | Molded-in color material reduces sound, will not rust or dent | |||
| Fender deck material | Stamped steel | |||
| Floor mats | Yes, with debris removing channels | |||
| Storage | Storage tray with cover | |||
| Service interval decal | Yes | |||
| Fender handles/grips | No | |||
| Cup holder | Yes | |||
| Equipment mounting | CargO Mount™ system | |||
| Maximum towing capacity | 500 lb 227 kg |
| Type | Sector and pinion with single drag link and tie rod | |||
|---|---|---|---|---|
| Four-wheel steer | Not available on this model | |||
| Steering wheel | Standard, diameter - 12 in. 30.5 cm |
|||
| Tilt steering wheel | No | |||
| Turning radius | 18 in. 45.7 cm |
|||
| Uncut circle radius | 25 in. 63.5 cm |
| Type | Two piece with open-back | |||
|---|---|---|---|---|
| Seat back height | 15 in. 38 cm |
|||
| Armrests | No | |||
| Fore-aft adjustment | While seated, 5.5 in. 14 cm |
|||
| Seat suspension | Tilt, two coil springs |
| Type | Spring-assisted hand-grip lever | |||
|---|---|---|---|---|
| Hydraulic outlets | No | |||
| Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
|||
| Cut height increments | 0.25 in. 0.64 cm |
|||
| Preset cut height | No |
| Type | Side discharge | |||
|---|---|---|---|---|
| Cutting width | Edge™ mower deck, 42 in. 107 cm |
|||
| Construction | Stamped steel deck shell | |||
| Mower deck material | Steel, 13 gauge 0.090 in. 2.3 mm |
|||
| Mower wash port | Yes | |||
| Mower drive system | Manual power take-off (PTO) | |||
| Mower wheels | Two | |||
| Mower wheel adjustment | One bolt | |||
| Mower level adjustment | Easy-level deck |
| Type | Slide under tractor | |||
|---|---|---|---|---|
| Front draft arms | One spring clip | |||
| Rear draft arms | Two spring clips | |||
| Mower wheels rotate | No | |||
| Drive system | Single belt |
| Meets ANSI standard | Yes | |||
|---|---|---|---|---|
| Meets OPEI standard | Yes | |||
| Backup protection | Reverse Implement Option (RIO) | |||
| Safety video | Yes |
| Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Full-length welded steel frame John Deere Easy Change 30-second oil change system |
|||
|---|---|---|---|---|
| Warranty | 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Rear bagger | 2-bag, 6.5 bu 229 L |
|||
|---|---|---|---|---|
| Mulching system | Mulch cover or high-performance plug | |||
| Front blade | 46 in. 116.8 cm |
|||
| Snow blower | Two-stage, 44 in. 111.8 cm |
|||
| Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Mounted, 15 U.S. gal. Tow-behind only, 25 U.S. gal. 94.6 L |
|||
| Spreader | Tow-behind only, 125-175 lb 57.7-80 kg |
|||
| Front bumper | Styled front bumper | |||
| Weather protection | Weather enclosure | |||
| Sun canopy | Sun canopy | |||
| Bucket holder | Yes, single bucket | |||
| Grass striping | Lawn striping kit | |||
| Tow-behind tools | 16 |
| Height | 44 in. 1118 mm |
|||
|---|---|---|---|---|
| Overall length | 69.7 in. 1770 mm |
|||
| Wheelbase | 48.9 in. 1242 mm |
|||
| Width with mower | 55.2 in. 1402 mm |
|||
| Width with mower (deflector raised for storage) | 46.5 in. 1181 mm |
|||
| Width without mower | 39.2 in. 996 mm |
|||

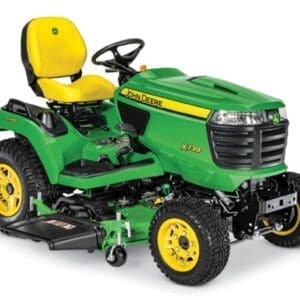

| Weight | Mower, no fuel, 444 lb 201 kg |
| Manufacturing location | Greeneville, Tennessee, USA | |||
|---|---|---|---|---|
| Date collected | 1-Dec-21 |
