NEW

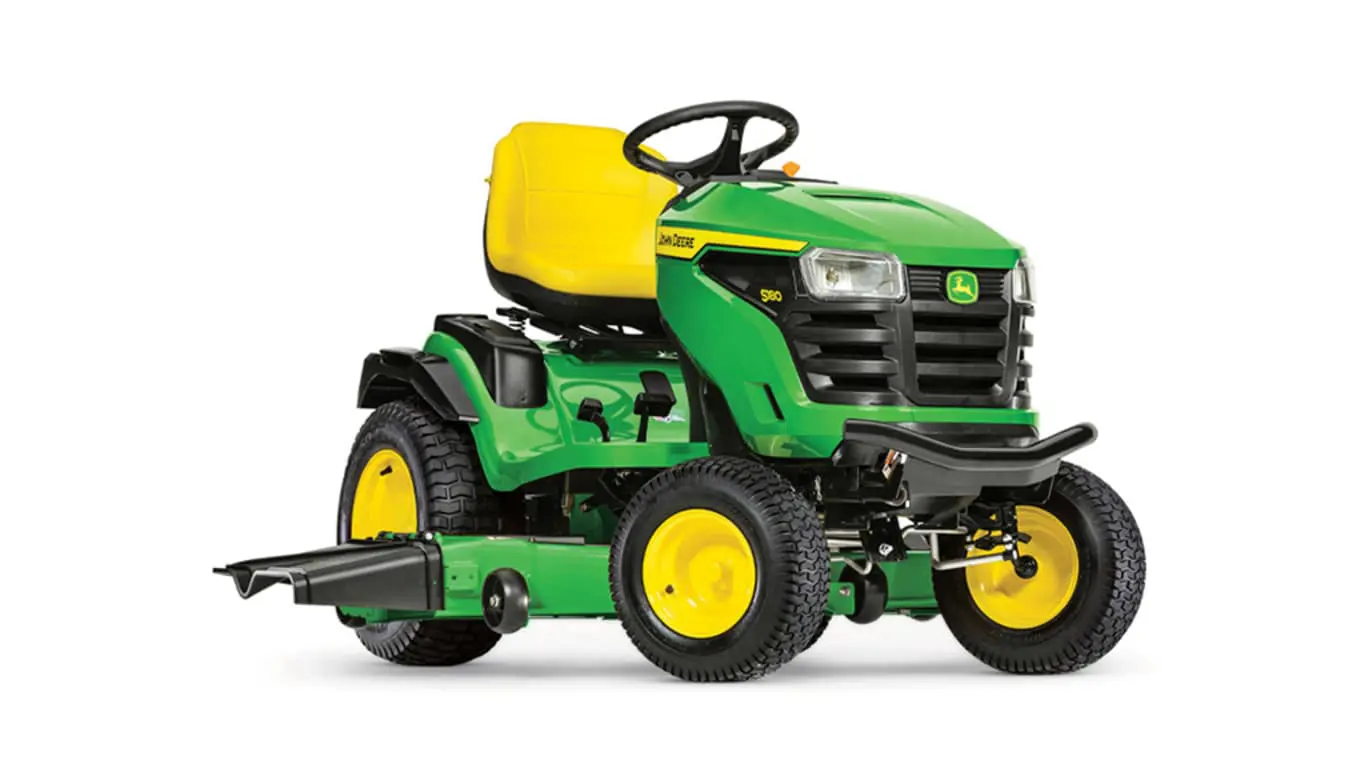

S180 – Available By Special Order Only

Starting at
$3,899.00
Local Pickup Only
John Deere Financial | Apply Today
Talk to Sales
Key Features
    • 24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
    • 54-in. Edge™ Mower Deck
    • Easy Change™ 30-Second Oil Change System
    • Adjustable lumbar seat and standard front bumper
    • 2 year/120 hour bumper-to-bumper warranty
View More Specs
TriGreen Logo Mark

Build Your Own

S180 – Available By Special Order Only
Features
Specifications
Brochure

Engine is powerful and smooth-running V-twin design

24-hp (17.9-kW) ELS engine 24-hp (17.9-kW) ELS engine

A 24-hp (17.9-kW) V-twin extended-life series (ELS) engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:

  • Includes ELS engine features for enhanced performance and longer life
  • V-twin cylinder design for greater torque, lower vibration, and improved sound quality
  • Electronic ignition for fast starts
  • Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
  • Cast-iron cylinder liners for longer engine life
  • Overhead valves for excellent power and fuel economy
  • Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
    • More effective when operating the tractor on an incline
Fuel tank
Fuel filler opening Fuel filler opening
  • The capacity is 2.4 U.S. gal. (9.1 L).
  • The fuel filler opening is conveniently located under the seat.
    • Filling the tank without spilling is easy.
    • A tethered fuel tank cap is more convenient.
    • The sealed fuel cap helps keep vapors inside the tank.

John Deere Easy Change™ 30-second oil change system

John Deere Easy Change 30-second oil change system John Deere Easy Change 30-second oil change system

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

  • A synthetic filter material is used for more predictable filtering and longer life.
  • Filtering capacity is greater than with a standard oil filter.
    • More filter surface area
    • More oil flow capacity
  • The system has 40 percent more oil volume.
  • The oil and engine run cooler.
  • The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.
  • The risk of spilling during oil service is greatly reduced.
  • Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.
  • This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With  the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

Full-featured engine is more reliable and lasts longer

24-hp (17.9-kW) engine 24-hp (17.9-kW) engine

This full-featured engine is engineered to deliver world-class endurance and power. A step above the competition, it is designed to be more dependable and longer lasting, saving time and money over the long run.

Built to exceed demanding needs by incorporating premium features and innovative designs:

  • Overhead valve (OHV) design for cooler operation and longer valve life
  • Contains an advanced debris management system that directs cooling air through the rotating screen to the air cleaner compartment, where large debris is pre-filtered through ejector slots
    • Keeps unfiltered air out of the engine through a large, dual-sealed, premium oval-shaped cartridge-style filter
    • Ensures maximum protection for extended engine life with the premium air cleaner, a pleated paper filter with a foam precleaner
    • Captures fine particles for maximum protection and extended maintenance
  • Provides maximum protection with full-pressure lubrication system
    • Pumps oil by a mechanical gerotor-style pump to all critical engine components
  • A premium bearing package for improved durability; includes a super-finished crank pin bearing with a 50 percent smoother surface to increase load capacity by 35 percent
    • Uses a premium DU Teflon®-coated bearing
    • Helps resist wear and increases durability through self-lubricating bronze bearing
  • Wear-resistant, chrome-plated valve stems for long-life valves
    • 44 percent smoother for longer life
  • Cast-iron cylinder liners for longer life
  • Dependable float-feed type carburetor with integral fuel pump
  • High-capacity fuel filter for dependable operation
  • John Deere Easy Change™ 30-second oil change system makes changing the engine oil easy, quick, and clean
  • Maintenance-free electronic ignition for quick, dependable starts
  • Platinum spark plugs for extended life

Teflon is a trademark of The Chemours Company FC, LLC.

Frame made of full-length welded steel for reliability

Solid one-piece frame Solid one-piece frame
Solid one-piece frame Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

  • Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
  • One-piece, steel fender deck is bolted to the frame.
Cast-iron front axle will not bend
Front axle and wheel spindle Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

  • Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
  • Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
  • Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.
Front bumper protects the tractor
Front bumper Front bumper
Front bumper Front bumper

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

  • Additional front-end protection
  • Attractive, bold style
CargO Mount™ system makes installation of rear bagger and other attachments easy
Rear CargO Mount points Rear CargO Mount points
Front CargO Mount points at the top of the dashboard Front CargO Mount points at the top of the dashboard
Rear bagger is mounted with CargO Mount points Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount points Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

Snow removal is a strength of lawn tractors

S140 Tractor with front blade, weights, and tire chains S140 Tractor with front blade, weights, and tire chains
S160 Tractor with snow blower, weather enclosure, weights, and tire chains S160 Tractor with snow blower, weather enclosure, weights, and tire chains

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

  • 44-in. (112-cm) Snow Blower
  • 46-in. (117-cm) Front Blade
  • Tire chains or TerraGrip traction belts
  • Weather enclosure
  • Weights



Hydrostatic transmission gives an infinite choice of ground speeds

Two-pedal speed/direction controls Two-pedal speed/direction controls
Forward speed control pedal in use Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

  • Automotive-type accelerator controls ensure easy operation.
  • Operator can change direction without lifting foot off the platform.
  • Large pedal surface gives superior operator comfort.
Hydrostatic transmission Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

  • Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
  • Tuff Torq K46 - S170 and S180

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.

Operator station designed for comfortable operation

Operator station is designed for comfort (S160 shown) Operator station is designed for comfort (S160 shown)
Comfortable operator station, left side (S170 shown) Comfortable operator station, left side (S170 shown)

The operator station is designed for operator comfort and easy operation:

  • Controls are positioned where they are easy to reach and use to control the tractor.
  • The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
  • The seat is positioned to provide the most comfortable operator position.
Steering wheel and dash Steering wheel and dash
Wide footrest with debris channels Wide footrest with debris channels

Controls are easy to see and use:

  • A deluxe, 14-in. (35.6-cm) steering wheel provides greater operator comfort and control.
  • Ignition switch is on the dash for starting ease.

Wide footrest areas with non-slip, anti-vibration rubber floor mats are provided for operator comfort:

  • The wide footrest makes it easy to step over the mower deck while entering or exiting the seat.
  • Debris removing channels help keep the footrest area clean and dry.
Comfortable lumbar seat Comfortable lumbar seat
Comfortable lumbar seat Comfortable lumbar seat
Lumbar seat adjustment knob Lumbar seat adjustment knob
Easy-to-adjust seat Easy-to-adjust seat

Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:

  • Especially helpful when operating the tractor for extended periods of time
  • Easily adjusted forward or rearward while in the seat
  • Seat travel of 5.5 in. (14 cm) and 10 different positions to adjust for operator height
Seat springs give a smoother ride Seat springs give a smoother ride
Seat tilted forward Seat tilted forward

Two long seat springs give plenty of seat travel to smooth out the ride, keeping the operator comfortable while operating the tractor.

The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank.

Beverage holder Beverage holder
Storage compartment with cover Storage compartment with cover

A beverage holder and storage compartment, located on the right fender, are conveniently located and easy to use.

Handgrip and reflector on fender flare Handgrip and reflector on fender flare

Fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.

Easy-read fuel gauge shows fuel level on dashboard and controls are convenient to use

S130 Tractor S130 Tractor
Steering wheel and controls on S130 Steering wheel and controls on S130
Instruments and controls

The contoured dash has clean, attractive styling:

  • Controls are color-coded and labeled for easy identification.
  • Controls are logically placed and easy to reach.
  • The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
  • Functional design of the controls provides good appearance and a comfortable feel.
Easy-read fuel gauge shows fuel level on the dashboard
Easy-read fuel gauge Easy-read fuel gauge
Convenient fuel filler opening Convenient fuel filler opening

The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:

  • Easy to check fuel level
  • Convenient location
  • Visible in cloudy or dusk conditions (is not backlit)
  • Does not slosh from bumps
  • The MowerPlus™ smartphone app can read and remember the fuel level (optional MowerPlus deluxe smart connector required)
  • The hour meter is also visible on the fuel gauge display
Side-by-side transmission control pedals
Two-pedal speed/direction controls Two-pedal speed/direction controls
Side-by-side foot pedals Side-by-side foot pedals

Side-by-side foot pedals control the speed and direction of travel:

  • Automotive-type accelerator controls ensure easy operation.
  • Operator can change direction without lifting foot off the platform.
  • Large pedal surface gives superior operator comfort.
Cruise control (S120, S130, S160, S170, and S180)
Cruise control lever Cruise control lever

Cruise control is available on the S120, S130, S160, S170, and the S180:

  • To engage, lift the cruise lever and hold until the foot is removed from the forward pedal.
  • The cruise control can be released by pushing on the brake pedal or the forward pedal.
Mower deck height adjustment
Mower deck height adjustment lever Mower deck height adjustment lever

A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:

  • Increments of 1/4  in. (0.64 cm) allow fine-tuning the cut height.
  • Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).
  • The lift handle is shaped for easy use and is out of the way of entering or exiting operators.
Parking brake control
Brake/parking brake pedal Brake/parking brake pedal
Parking brake lever Parking brake lever

The parking brake control is conveniently located on the tractor pedestal for easy access. It holds the brake pedal securely in the locked position.

Electric power take-off (PTO) clutch is easy and convenient
Electric PTO engagement switch Electric PTO engagement switch

The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.

Reverse implement option (RIO)
RIO switch RIO switch
Using RIO

CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:

  • Carefully check the area around the machine.
  • Disengage the mower before backing up.



NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.



  1. Stop forward travel.
  2. Look behind the machine to be sure there are no bystanders.
  3. Push and hold in the RIO switch while depressing the reverse pedal slightly.



NOTE: If the engine and mower or other attachment stops while repositioning the machine, return the attachment engagement lever/switch to the off position. Start the engine and engage mower or other attachment. Begin again with step 2.



  1. Release the RIO switch and reposition the machine as the machine begins to move rearward.
  2. Resume forward travel. The mower or other attachment should continue operating.
  3. Repeat procedure to position the machine again.

Convenient maintenance is supported by trusted self-service resources

Example quick-response (QR) code label Example quick-response (QR) code label

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

Upper portion of owner support web page Upper portion of owner support web page
Lower portion of owner support web page Lower portion of owner support web page

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.



The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Serviceability is convenient with an easy-open hood
One-piece hood is easy to open (shown on S110 model) One-piece hood is easy to open (shown on S110 model)
Service interval decal located under hood Service interval decal located under hood

The one-piece hood opens easily to permit checking and servicing the engine:

  • Important service points are located within easy reach.
  • A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.
John Deere Easy Change™ 30-second oil change system John Deere Easy Change™ 30-second oil change system
Seat tilted up for easy access to fuel-fill opening Seat tilted up for easy access to fuel-fill opening

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as removing the old oil-filled filter and twisting on a new oil-filled filter.

The seat tilts up and out of the way to make adding fuel easy.

Hood will not rust or dent and includes quality headlights
One-piece hood with quality headlights One-piece hood with quality headlights
  • Molded-in color material reduces sound and will not rust or dent.
  • Same quality hood material as on larger John Deere tractors provides good resilience and UV resistance for an extended time.
  • Openings on the side let in plenty of cooling air while keeping the sound level low.
  • Two headlights provide good lighting for nighttime operation.

Help maintain your mower and lawn with the MowerPlus™ app and connector

MowerPlus home screen MowerPlus home screen
MowerPlus maintenance screen MowerPlus maintenance screen
Overview

Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.

Benefits
  • Engine hours, fuel level, and battery health (as compatible)
  • Mowing history with time, distance, area, and speed
  • Current day and five-day weather forecast based on location
  • Walk-through setup guides
  • Expert mowing tips
  • Useful attachments for future purchase
  • Periodic maintenance reminders
  • Safety instructions



To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.

Additional details

MowerPlus connectors (sold separately)

MowerPlus Deluxe Smart Connector, with a phone MowerPlus Deluxe Smart Connector, with a phone

MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.



BUC10929 MowerPlus Deluxe Smart Connector is for use with:

  • All S120, S130, S160, S170, and S180 Tractors
  • Model year 2021 and newer S240 Tractors (serial number 880,001-)
  • Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)



BUC10537 MowerPlus Smart Connector is for use with:

  • Model year 2016 and newer Select Series X300 and X500 Tractors



MowerPlus connectors transmit the fuel level and engine hour information to the app, making it easy to keep track of fuel level and maintenance intervals.



MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries.



Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.

The Edge™ cutting system gives superior performance

54-in. (137-cm) Edge cutting system 54-in. (137-cm) Edge cutting system

The Edge cutting system has been trademarked to emphasize the advantages of the John Deere mower deck designs. They give superior mowing performance, convenience, and reliability:

  • The deep-deck design lifts grass for a clean, even cut.
  • The smooth underside has no nooks and crannies, preventing grass buildup and evenly dispersing grass clippings.
  • The rolled outer edge of the deck provides extra strength and protection.
  • Dual-stage E-coat and powder paint coatings provide extra protection from rust.
  • Flexible discharge chute minimizes property and mower deck damage.

The 54-in. (137-cm) Edge Mower Deck is a three-spindle design with heavy-duty characteristics:

  • The 11-gauge, 0.12-in. (3-mm) steel deck will provide years of dependable mowing.
  • Included blades work well for side-discharge or bagging.
  • The blade-to-spindle design provides a unique mounting system for the mower blade that gives extra safety and convenience.
  • Five mower deck wheels are standard equipment for a smooth mowing job in rolling terrain.
  • A mulching attachment is available and comes with blades that enhance mulching performance.
Mower wash port
Mower wash port Mower wash port
Mower wash port with hose connector Mower wash port with hose connector

A wash port is provided to make cleaning the underside of the mower deck easy:

  • A hose connector included with mower deck.
Optional Power Flow™ bagger
6.5-bu (229-L) hopper, chute, and Power Flow blower on an S180 6.5-bu (229-L) hopper, chute, and Power Flow blower on an S180

A  6.5-bu (229-L) Power Flow bagger is sold separately. The bagger kit provides efficient bagging performance and has easy-to-empty bags.

Two-year or 120-hour bumper-to-bumper warranty is included

A 2-year or 120-hour single-source, bumper-to-bumper warranty* is included for all John Deere 100 Series Tractors.

  • The warranty is hassle free, with both the mower and the engine covered by a single warranty.

  • If the mower is sold, the remaining warranty term is transferable to a new owner.

*Term limited to years or hours used, whichever comes first, and varies by model. U.S. and Canada only. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.

Engine power 24 hp
17.9 kW
Oil change John Deere Easy Change™ 30-second oil change system
Engine manufacturer/model 44U877 (M44)
Transaxle type K46 heavy-duty hydrostatic, two-wheel drive
Transaxle control Side-by-side pedals
Rear tires 22x9.5-12
Lift system type Spring-assisted hand-grip lever
Cutting width Edge™ mower deck, 54 in.
137 cm
U.S. warranty 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Power 24 hp
17.9 kW
Displacement 44.2 cu in.
724 cc
Manufacturer/model 44U877 (M44)
Type Overhead valve, full-pressure lube, oil filter
Cylinders V-twin - extended life series (ELS)
Governor Mechanical
Choke/speed control Single lever with spring-return on choke
Cooling method Air
Air cleaner Cartridge with prefilter
Oil change John Deere Easy Change 30-second oil change system
Type Gasoline
Fuel delivery Pulse pump and carburetor
Fuel gauge Easy-read on dash
Fuel tank location Rear
Fuel fill opening Center, 1.75 in.
4.45 cm
Fuel tank capacity 2.4 U.S. gal.
9.1 L
Battery 12 V
300 CCA
Charging system Regulated, 14 amp
Engine starter Bendix type
Hour meter Yes
Headlights Two standard, incandescent
Taillights or reflector Reflectors
Backup lights No
Rear work lights No
12-V outlet No
Type Hydrostatic, 2-wheel drive
Control Side-by-side pedals
Cruise control Standard
Oil cooler Fins and fan on transaxle
Oil filter Yes, not serviceable
Differential lock No
Forward speed 0-5.5 mph
0-8.9 km/h
Reverse speed 0-3.2 mph
0-5.2 km/h
Brakes Internal wet disk
Frame Full-length welded steel
Primer/paint E-coat/powder
Weight bracket Optional rear
Receiver hitch No
Front axle Cast iron front axle, front wheel sealed ball bearings
Spindle bushings No
Front tires 16x6.5-8
Rear tires 22x9.5-12
Hood material Molded-in color material reduces sound, will not rust or dent
Fender deck material Stamped steel
Floor mats Yes, with debris removing channels
Storage Storage tray with cover
Service interval decal Yes
Fender handles/grips Handgrips
Cup holder Yes
Equipment mounting CargO Mount™ system
Maximum towing capacity 500 lb
227 kg
Type Sector and pinion with single drag link and tie rod
Four-wheel steer Not available on this model
Steering wheel Deluxe, diameter - 14 in.
35.6 cm
Tilt steering wheel No
Turning radius 18 in.
45.7 cm
Uncut circle radius 18 in.
45.7 cm
Type One piece with lumbar adjustment
Seat back height 15 in.
38 cm
Armrests No
Fore-aft adjustment While seated, 5.5 in.
14 cm
Seat suspension Tilt, two coil springs
Type Spring-assisted hand-grip lever
Hydraulic outlets No
Mower cut height 13 positions, 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height No
Type Side discharge
Cutting width Edge™ mower deck, 54 in.
137 cm
Construction Stamped steel deck shell
Mower deck material Steel, 11 gauge
0.120 in.
3 mm
Mower wash port Yes
Mower drive system Electric power take-off (PTO) clutch
Mower wheels Five
Mower wheel adjustment One bolt
Mower level adjustment Easy-level deck
Type Slide under tractor
Front draft arms One spring clip
Rear draft arms Two spring clips
Mower wheels rotate No
Drive system Single belt
Meets ANSI standard Yes
Meets OPEI standard Yes
Backup protection Reverse Implement Option (RIO)
Safety video Yes
Notes Molded-in color material reduces sound, will not rust or dent
Durable primer and powder paint finish
Large, 14-in. (36-cm) steering wheel for more comfortable operation
John Deere Easy Change 30-second oil change system
Warranty 2 year/120 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Mowers
Rear bagger 2-bag, 6.5 bu
229 L
Powered material collection Power Flow™ blower
Mulching system High performance plug
Front thatcher
Front blade 46 in.
116.8 cm
Mid-mount blade
Snow blower Two-stage, 44 in.
111.8 cm
Rotary broom
Rotary tiller
Sleeve hitch
3-point hitch
Rear power take-off (PTO)
Plow, moldboard
Box scraper
Cultivator
Rear blade
Disk harrow
Landscape rake
Sprayer Tow-behind, 15 U.S. gal.
56.8 L
Mounted, 15 U.S. gal.
Tow-behind only, 25 U.S. gal.
94.6 L
Spreader Tow-behind only, 125-175 lb
57.7-80 kg
Front bumper Included
Brush guard
Weather protection Weather enclosure
Sun canopy Sun canopy
Rear receiver hitch
Bucket holder Yes, single bucket
Grass striping Lawn striping kit
Tractor shovel
Front loader
Other equipment
Tow-behind tools 16
Height 45.7 in.
1160 mm
Overall length 75.3 in.
1913 mm
Wheelbase 48.9 in.
1242 mm
Width with mower 67 in.
1702 mm
Width with mower (deflector raised for storage) 51.7 in.
1313 mm
Width without mower 39.2 in.
996 mm
Weight Mower, no fuel, 526 lb
239 kg
Manufacturing location Greeneville, Tennessee, USA
Date collected 1-Dec-21
View Brochure
Offer may expire at any time. Subject to approved credit on a Revolving Plan account, a service of John Deere Financial, f.s.b. For consumer use only. No down payment required. Interest will be charged to your account from the purchase date at 17.9% APR if the purchase balance is not paid in full within 9 months or if your account is otherwise in default. Offer available on new equipment and in the U.S. only. Prices and savings in U.S. dollars. Prices and models may vary by dealer

Additional attachments and options available in-store.

John Deere Rewards discounts can be applied to in-store purchases.

Finance calculator is for estimation only. Taxes, fees, set up and delivery may increase your monthly payment.Same-day pickup not guaranteed for equipment orders

Same-day pickup not guaranteed for equipment orders.

The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Product features subject to change. Images of options may not accurately represent products purchased. Call your local TriGreen dealership for details.

Specs
Build Your Own
Financing
Powered by Lapero
