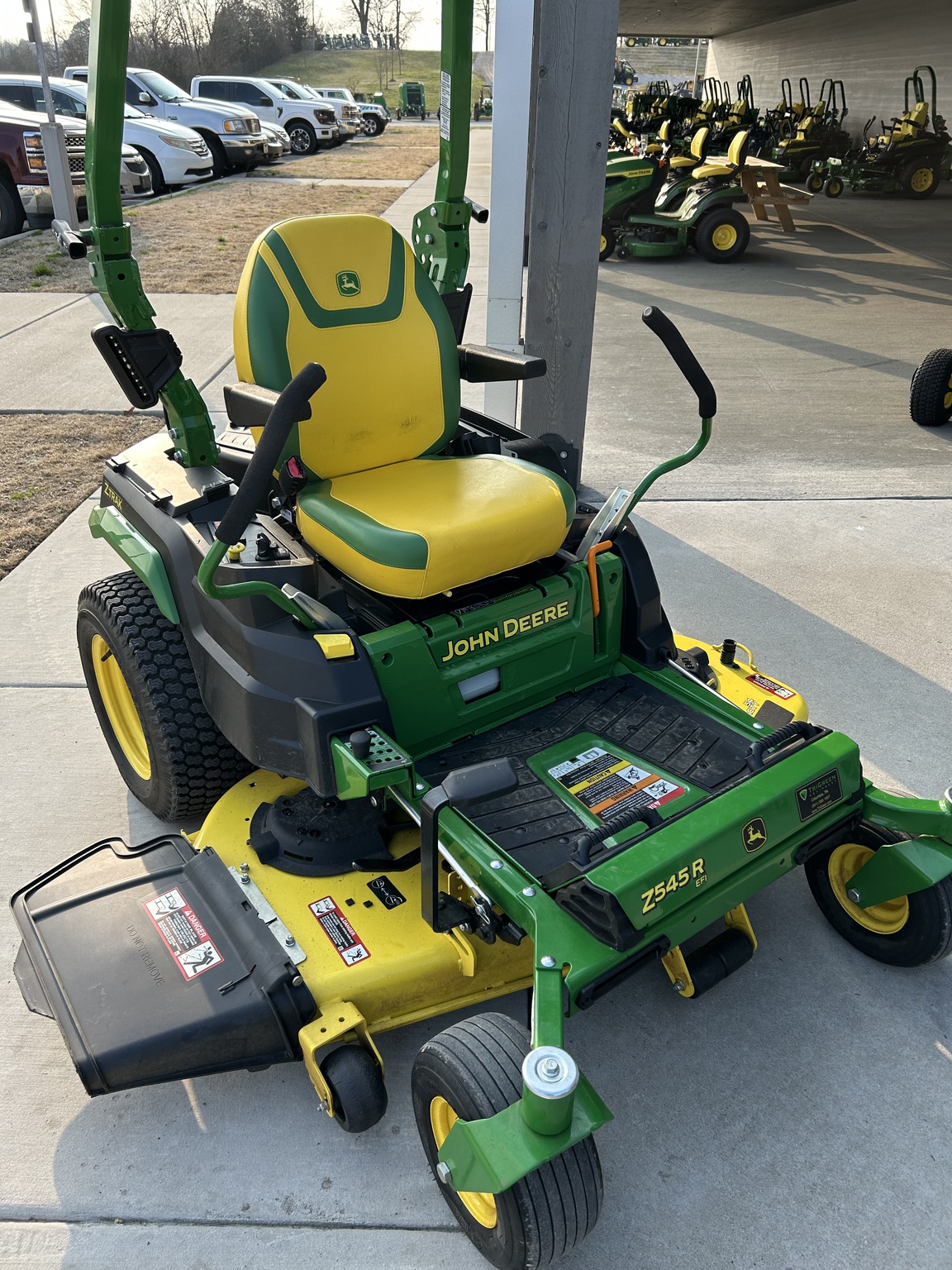

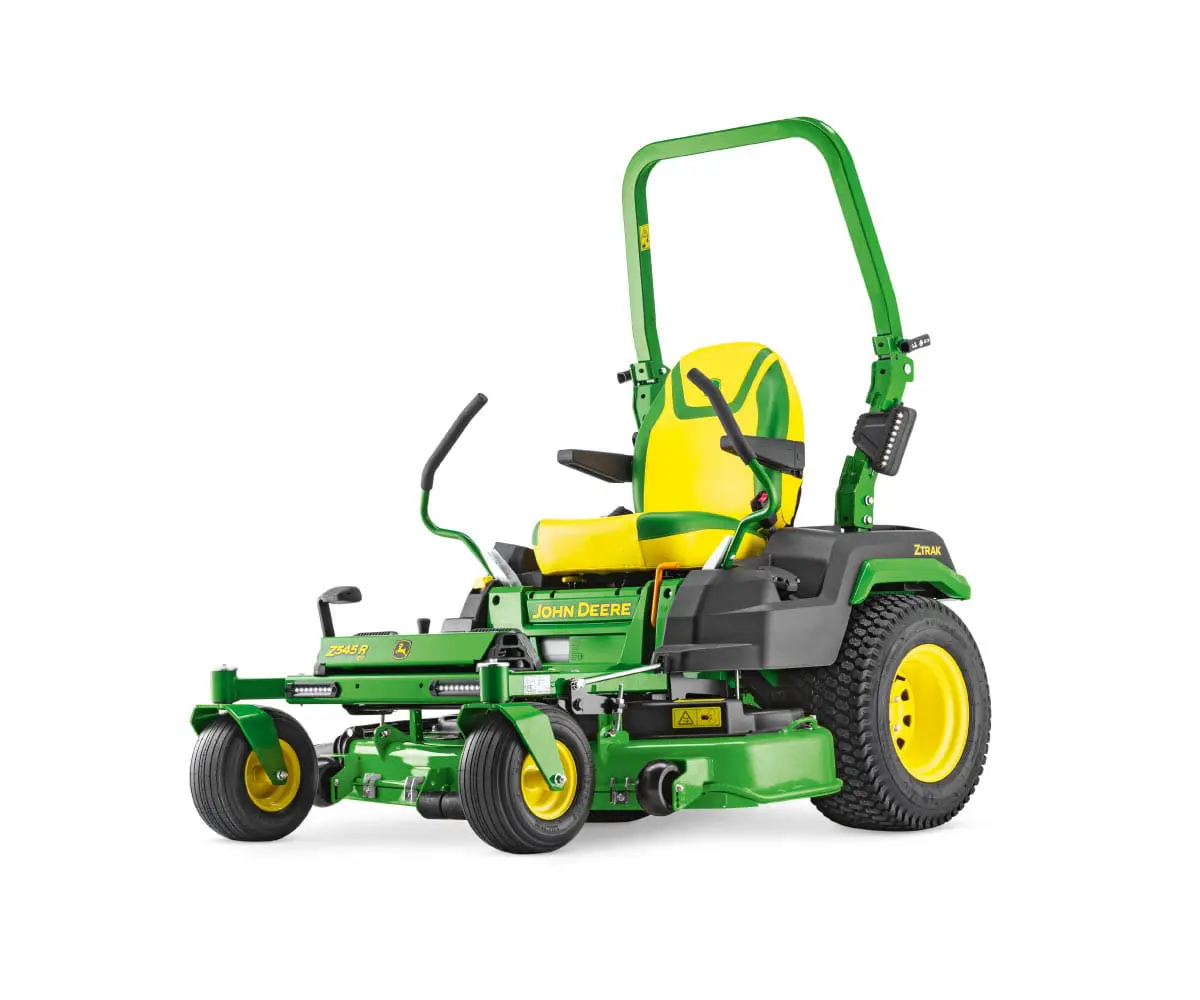

Z545R ZTrak™ Zero Turn Mower

Man mows lawn next to house with John Deere Z545R Ztrak zero turn mower
John Deere Z545R ZTrak Zero Turn Mower
Man mows lawn next to house with John Deere Z545R Ztrak zero turn mower
John Deere Z545R ZTrak Zero Turn Mower
Man mows lawn next to house with John Deere Z545R Ztrak zero turn mower
John Deere Z545R ZTrak Zero Turn Mower

NEW

Z545R ZTrak™ Zero Turn Mower

Starting at
$6,999.00
Local Pickup Only
4.9% For 60 Months | Apply Today
Talk to Sales
Key Features
    • 25 hp* (18.6 kW) EFI engine with Electronic Throttle Control
    • 22.5-in seat with armrests and ComfortGlideTM suspension
    • 4-year/500-hour bumper-to-bumper warranty**
View More Specs
TriGreen Logo Mark

Build Your Own

Z545R ZTrak™ Zero Turn Mower
Features
Specifications
Brochure

Comfortable ride delivered by an operator station with adjustable controls and ComfortGlide™ suspension

Operator station of Z545R (shown with optional angled steering levers) Operator station of Z545R (shown with optional angled steering levers)
Color-coded controls are easy to identify (Z545R shown) Color-coded controls are easy to identify (Z545R shown)

The operator station is designed to provide superior operator comfort for many different operators:

  • Large, comfortable foot platform
    • Plenty of legroom for comfortable operation
    • Isolated with thick rubber spacers to minimize vibration
    • Standard rubber floor mat for extra foot comfort
    • Standard rubber toe board mat to stretch your legs in comfort
    • Standard foot pegs allow various comfortable positions for your feet
  • Adjustable seat position, armrests, and spring suspension to suit each operator
    • Control panel conveniently located to the right of the seat
  • Adjustable motion-control levers
    • Upper and lower positioning combined with forward and rearward tilt offers more legroom and hand positions

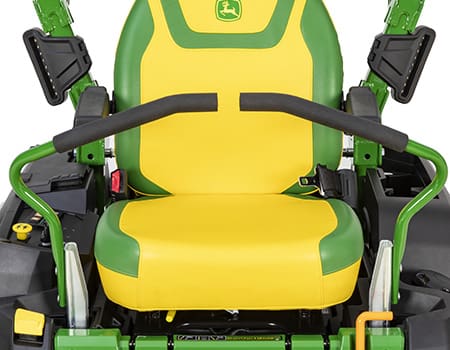

Comfortable seat
Comfortable seat with adjustable armrests Comfortable seat with adjustable armrests
ComfortGlide™ suspension seat adjustment lever ComfortGlide™ suspension seat adjustment lever

The comfortable seat has two suspension springs, fore-aft seat adjustment and ComfortGlide suspension:

  • A high-back, 22.5-in. (57.1-cm) seat with thick foam padding for good support and comfort
  • Armrests for extra support
  • 3-in. (7.6-cm) no-tools, fore-aft adjustment
Seat suspension
Long steel seat springs (left) Long steel seat springs (left)
Long steel seat springs (right) Long steel seat springs (right)
  • Two long, steel springs to absorb shocks when traveling over rougher areas
  • ComfortGlide is an additional system that allows a controlled fore and aft movement of the seat when experiencing undulations in uneven terrain. (M and R Series only)
    • Dramatically reduces horizontal vibrations and reduces jarring
    • Feel of ride is as if the operator is floating over the ground
    • Makes a big improvement to operator ride comfort
    • Allows front to rear movement, 1-in. (2.5-cm) forward and 1-in. (2.5-cm) rearward, to be absorbed
    • One lever with three positions
      • Slide seat fore/aft up to 3 in. (7.6 cm)
      • Engage isolator function to allow movement up to 1 in. (2.5 cm) fore and aft
      • Disengage isolator function to lock seat in position
Foot pegs (standard on R Series, optional on E and M Series)
Foot pegs (Z545R with toe-board mat shown) Foot pegs (Z545R with toe-board mat shown)

Foot pegs (standard on the Z530R and Z545R and available as an extra-cost kit on the Z515E and Z530M) provide you with different foot placement options.

Foot pegs are secured to the toe board in the horizontal position to provide more variability for foot placement. The pegs also act as handles to remove and replace the foot platform.

NOTE: Toe-board mat shown in photo is standard equipment on the Z530R and Z545R and can be ordered through Parts for the Z515E and Z530M.

Cup holder and storage compartment
Dual beverage holder Dual beverage holder
Storage compartment with standard cover Storage compartment with standard cover

The dual beverage holder on the left fender and storage compartment on the right fender add convenience for the operator:

  • Room for two drink containers of various sizes for longer mowing jobs
  • Storage compartment provides a safe and convenient location to store tools and supplies

NOTE: A storage compartment cover is standard on the Z530R and Z545R.

12-V charge port
12-V charge port 12-V charge port

12-V outlet is located within the storage compartment for the convenience of connecting a variety of electrical and electronic equipment.

Easy-to-see-and-use advanced instrument display with electric fuel gauge and controls

Control console includes an easy-to-read fuel gauge
Control console Control console
Engine speed controls Engine speed controls

The control console is located to the right of the operator station and includes the following:

  • Ignition switch
  • Power take-off (PTO) control (yellow)
  • Light switch
  • Space for an additional electric control switch
  • Engine speed controls (orange)

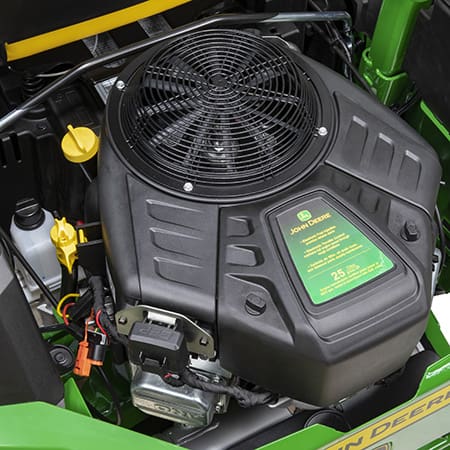

The Z545R engine is equipped with electronic fuel injection (EFI) and electronic throttle control (ETC) that permit simplified electronic control of engine speed and power for optimum performance in varying conditions:

  • MAX – full power and performance for the toughest mowing conditions, such as longer, thicker grass
  • ECO – fuel saving setting for easier mowing conditions, such as shorter or dryer grass
  • MIN – engine idle speed for transport, loading/unloading, etc.
Advanced display includes fuel gauge (key switch on) Advanced display includes fuel gauge (key switch on)

Advanced instrument display has the look and feel of a modern automobile with a power-up sequence cycles lights and gauges to indicate they are working:

  • Display features a dark cockpit design to minimize operator distractions.
  • Display is backlit for night visibility.
  • Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
  • Electronic fuel gauge provides real-time fuel level information.
  • A tachometer graphically displays engine speed.
    • Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
  • An indicator tells the operator when the PTO is operating.
  • Bright caution and stop lights capture the operator's attention when important information is on the instrument cluster.
    • Damage can be prevented and repair costs can be reduced by addressing problems early.
  • Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
    • The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
  • Operators are advised if battery voltage is low, normal, or excessive.
  • The service indicator light illuminates to indicate a diagnostic error code is stored.
    • On-board diagnostics provides trouble codes for use by trained technicians.
      • For example, a technician can test switch functionality and circuit continuity without tools.
Fuel sight widow and fill cap
Fuel sight window Fuel sight window
Fuel sight window and fuel fill cap Fuel sight window and fuel fill cap

A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:

  • Semi-clear material makes seeing how much fuel is in the tank quick and easy.
  • Large, 3-in. (7.6-cm) diameter fuel-fill opening reduces the chance of spilling when adding fuel.
    • Fuel-fill opening is low and angled to make adding fuel easy.
  • Cap is tethered to the fuel tank.
    • Less chance of fuel cap getting lost
Mower deck lift and cut height
Mower lift pedal and cut-height adjustment Mower lift pedal and cut-height adjustment
Mower deck cut-height adjustment and transport lock Mower deck cut-height adjustment and transport lock

Mower deck cutting height can be adjusted from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:

  • A convenient foot-lift pedal is used to raise the mower deck for setting cut height or locking mower in the raised or transport position.
  • A lift-assist spring is provided to optimize the effort it takes to raise the mower deck.
Cut-height adjustment and transport lock
  • To adjust cut height, simply push down on the foot-lift pedal, place the cut-height pin in the desired location, and release the foot-lift pedal to lower the deck to the chosen height.
  • Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
  • To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever, and release the foot-lift pedal to lower the deck to the chosen height.
Adjustable steering levers
Motion-control levers in operating position Motion-control levers in operating position
Motion-control levers in park position Motion-control levers in park position

Motion control levers are shaped and located for operator comfort and ease of control.

18-position control lever adjustment, low 18-position control lever adjustment, low
18-position control lever adjustment, high 18-position control lever adjustment, high

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:

  • Combined height and fore/aft adjustments provide 18 positions
  • Increased operator comfort with more leg room and more hand positions
  • Adjustable for most precise control of the machine
Tracking adjustment
Tracking adjustment bolts Tracking adjustment bolts
Tracking adjustment tool Tracking adjustment tool

Tracking adjustment can be made from the operator seat with the provided tool.

Park brake
Park brake lever Park brake lever
Motion-control levers in park position Motion-control levers in park position

The park brake is conveniently located:

  • Large lever is easy to use.
  • Park brake effectively holds the machine in the parked position.
  • Park brake must be engaged (in the upper position) to start the engine.
  • Once the engine is started, the park brake must be disengaged before operating the motion-control levers.

Brake-and-go logic:

  • Park brake must be engaged for the engine to crank.
  • Motion-control levers must be in the outward position for the engine to crank.
  • Park brake must be disengaged before operating the motion-control levers or the engine will stall.
Safety interlock system
Interlock switch is located under the seat Interlock switch is located under the seat

Safety interlocks help prevent operating in an unsafe way:

  • The parking brake must be engaged for the engine to crank.
    • Parking brake is set when motion-control levers are in the outward position.
  • The operator presence system requires the operator to be in the seat to operate the PTO.
  • The key switch interlock prevents bypass starting.
  • If the operator leaves the seat when the PTO is engaged, the controls are in the operating position, or the parking brake is not set, the engine will shut down.
  • The seat interlock switch disengages the mower when the operator leaves the seat.
  • The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.

Superior durability and productivity from flat-top design of 9-gauge, 0.15-in. (3.8-mm) high capacity mower decks

High capacity mower deck (front) High capacity mower deck (front)
High capacity mower deck (left side) High capacity mower deck (left side)

High Capacity Mower Decks are a heavy-duty, 9-gauge, 0.15-in. (3.8-mm), forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Experience optimal performance and dispersion of clippings, even at faster mowing speeds:

  • Deep-deck design throughout the entire deck shell provides optimum mowing, mulching, and bagging performance.
    • Optional MulchControl™ attachment provides superior mulching performance and versatility (not available on 48HC decks).
  • Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
  • Mower deck is suspended from the vehicle for a smooth and level cut.
    • Adjustable mower wheels positioned just above ground level help smooth out the mowing job.

Z530R and Z545R ZTrak™ Mowers are equipped with a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) High Capacity Mower Deck.

Compatibility



High Capacity Mower Deck size Model Mulching (optional) Material collection (optional)
48 in. (122 cm) Z545R Dedicated mulching system 6.5-bu (230-L) two-bag Power Flow™ system
54 in. (137 cm) Z530R, Z545R MulchControl system 6.5-bu (230-L) two-bag Power Flow system
60 in. (152 cm) Z530R, Z545R MulchControl system Not available





Deep deck design
Deep, flat-top deck (front view) Deep, flat-top deck (front view)
Deep, flat-top deck (left front view) Deep, flat-top deck (left front view)

The mower deck has a deep-deck design:

  • Constructed from heavy, 9-gauge, 0.15-in. (3.8-mm) steel
    • Minimizes the number of welds required
    • Has a smooth underside for reduced material buildup
  • Deep-deck design delivers excellent airflow so large volumes of material can be processed quickly and efficiently.
  • A wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
  • A durable, plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
  • 1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.
  • Standard front rollers and two double-captured wheels provide a more even mowing job and reduce the chance of scalping.
    • Adjustable for different mowing heights
  • The front edge is raised above the blade plane to allow for even cutting of tall grass.
  • Blade overlap is greater than many conventional decks for a clean cut.
  • The mower can side-discharge, mulch, or collect material.
Mower level adjustment
Mower level adjusting points Mower level adjusting points
  • Deck leveling and rake angle adjustment is provided at all four mower mounting points.
Reinforced leading edge
Reinforced leading edge and trim side of mower deck Reinforced leading edge and trim side of mower deck

Steel reinforcing bars are welded to the front edge and trim side of the mower deck:

  • Strengthens the deck to reduce chance of damage from obstructions
  • Increased material thickness for longer deck life
Superior durability is designed in
Deep mower deck spindle pocket with flip-up spindle cover Deep mower deck spindle pocket with flip-up spindle cover

The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:

  • Ribs formed in the deck shell add strength where needed.
  • The aluminum spindle housing has an 8-in. (20-cm) base for extra strength.

Flip-up spindle covers make cleaning the spindle area convenient.

Wheels and rollers
Right and left mower anti-scalp wheel and center rollers Right and left mower anti-scalp wheel and center rollers

Dual-captured side anti-scalp wheels and front rollers:

  • Give a more even mowing job and reduce the chance of scalping
  • Wheels are adjustable for different mowing heights
Optional MulchControl™ attachment
MulchControl with baffle closed (shown on similar X700 54-in. [137-cm] High-Capacity Mower Deck) MulchControl with baffle closed (shown on similar X700 54-in. [137-cm] High-Capacity Mower Deck)
MulchControl with baffle open (shown on similar X700 54-in. [137-cm] High-Capacity Mower Deck) MulchControl with baffle open (shown on similar X700 54-in. [137-cm] High-Capacity Mower Deck)

The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material. Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer required
  • Elimination of the effort needed to dispose of clippings

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
  • Mulching blades to give a more complete mulching job are included.
  • The left mower blade area is completely enclosed and optimized for mulching and will mulch even when the mower is in the side-discharge mode.
  • Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
  • A MulchControl kit is not available for 48HC mower decks.
MulchControl operation
MulchControl handle (shown on similar Z700) MulchControl handle (shown on similar Z700)

The optional MulchControl attachment comes with a handle on top of the mower deck that is used to open and close the discharge baffle:

  • The operator is required to get off of the machine in order to engage or disengage mulch mode.
  • Changing from mulching to side discharge or vice versa with the hand lever takes only a few seconds.

MulchControl is well-suited to the following mowing situations:

  • Usually mulch, but side discharge when grass gets too long
  • Usually side discharge, but would like to be able to close the chute to control clippings
  • Always mulch a main lawn, but often side discharge secondary lawns
  • Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.

MulchControl limitations

While in the side-discharge mode, MulchControl will still mulch about one-third of the material. Therefore, the side-discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn cleanup is desired
Optional 6.5-bu (229-L) ZTrak Z500 Series material collection system (MCS) (not available for 60-in. [152-cm] High Capacity Mower Deck)
Rear bagger (right-rear view) Rear bagger (right-rear view)
Rear bagger (right-front view) Rear bagger (right-front view)

The 6.5-bu (230-L) rear bagger efficiently collects material from a 48- or 54-in. (122- or 137-cm) Mower Deck:

  • Hopper and included attachment bar/bumper, Power Flow blower, and chute components are ordered separately to make a complete MCS.
  • A weight bracket is included for installation on the front of the vehicle to help counterbalance the weight of the hopper. For proper ballast with complete MCS:
    • Four weights are required on a ZTrak Z500 Series equipped with a 48-in. (122-cm) Mower Deck.
    • Three weights are required on a ZTrak Z500 Series equipped with a 54-in. (137-cm) Mower Deck.
Removing bag from 6.5-bu (230-L) hopper Removing bag from 6.5-bu (230-L) hopper
Removing bag from 6.5-bu (230-L) hopper Removing bag from 6.5-bu (230-L) hopper

The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:

  • Two durable bags give a generous, 6.5-bu (230-L) capacity.
  • The bags lift out for easy emptying.
  • An efficient chute provides a smooth flow of material to reduce the chance of plugging.
    • The chute and Power Flow blower must be ordered separately.
  • Standard mower blades are used for bagging.
  • The air exhaust duct directs air from the hopper back and toward the ground for clean operation.
  • Convenient latch makes opening and closing the hopper easy.

NOTE: Appropriate hopper with included attachment bar, Power Flow blower, chute and weights are required and ordered separately.

Specifications
Capacity 6.5 bu (230 L)
Material:
   Hopper top High impact polypropylene
   Chute Polyethylene
   Blower housing Nylon
   Fan Ultra-high molecular weight (UHMW) polyethylene
   Bags Polyester
Filling Directly into bags for emptying on ground or in trailer or into plastic liners
Fan diameter 13 in. (33 cm)
Fan width 2.75 in. (7 cm)
Number of fan blades Four

NOTE: MulchControl attachments and MCS components are not included in base equipment for a Z500 Series machine and must be ordered separately.

Quick starts and top performance from 44.2-cu in. (724-cc) V-twin engine with electronic fuel injection (EFI) and electronic throttle control (ETC)

25-hp (18.6-kW) engine 25-hp (18.6-kW) engine
Engine cleanout port and air filter cover Engine cleanout port and air filter cover
  • The Z545R engine includes EFI and ETC features for superior performance:
    • EFI meters the correct amount of fuel directly into each engine cylinder for all operating conditions.
      • Simplifies engine starts and warm-up by eliminating the need for the operator to use a choke.
        • Fast, reliable starts are routine just like with a modern automobile.
      • Fuel usage is reduced up to 20 percent compared to a carbureted engine.
      • No adjustments are needed at altitude
      • No choke-related problems since the choke is eliminated
      • Reduced maintenance expense because of fewer complaints related to hard starting, vapor lock, misfire, run-on, or fouled spark plugs
    • ETC works in conjunction with EFI to electronically adjust the supply of fuel air mixture.
      • Increases torque as needed to maintain engine operating speed under load.
      • Ground speed and mower blade-tip speed remain constant, even in heavy-grass conditions, to improve productivity and cut quality.
      • Mechanical governors cannot respond fast enough to maintain a constant engine speed.
      • Some torque rise remains to warn the operator before the engine stalls.
  • Large 44.2-cu in. (724-cc) displacement for torque to pull through tough operating conditions.
    • Easy inspection and removal of any debris that may have collected using two large cleanout ports that are integrated into the engine shroud over the cylinder heads.
    • Engine service times, reliability, and life are increased with the use of premium engine oil and air filtering systems, as well as the cooling design.
  • 25 hp (18.6 kW) at 3500 rpm for excellent performance
    • Greater torque, lower vibration, and improved sound quality from the V-twin cylinder design
    • Fast starts with electronic ignition
    • Long engine life with cast-iron cylinder liners
    • Excellent power and fuel economy with overhead valves
    • Reliable operation with in-line fuel filter
Control console (key on to show display) Control console (key on to show display)
Engine speed controls Engine speed controls

No choke control is needed:

  • A servo motor controls the intake air butterfly valve and the air stream.
  • For cold starts, the actuator will close the valve, making starting the engine easier. No choke lever is needed.
  • Starts are quick and easy, even for inexperienced operators.

Since the Z545R engine is equipped with EFI and ETC, simplified electronic control of engine speed and power for optimum performance in varying conditions is advantageous:

  • MAX – full power and performance for the toughest mowing conditions, such as longer, thicker grass
  • ECO – fuel saving setting for easier mowing conditions, such as shorter or dryer grass
  • MIN – engine idle speed for transport
Engine oil check and fill cap Engine oil check and fill cap
Engine oil-drain hose Engine oil-drain hose

Easily access the oil check and fill cap that is located at the top of engine. A no-tools oil-drain cap with hose is also provided for easy, no-mess maintenance.

4.5-gal. (17-L) fuel capacity for extended mowing times
Fuel tank and fuel sight window Fuel tank and fuel sight window
Fuel fill cap Fuel fill cap

The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight level window and dash-mounted gauge:

  • Longer times between refills with the large tank
  • Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine or glancing at the dash from the seat
  • Easy filling and minimum chance of spills with a large, 3-in. (7.6-cm) diameter fuel opening that is low and angled

John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

Protective zone around the operator is provided by the rollover protective structure (ROPS)

Clean, open operator station Clean, open operator station
Standard folding ROPS Standard folding ROPS

The spacious operator station has been designed for comfort, visibility, and ease of use:

  • Getting on and off easy with the flat operator platform.
  • Convenient-to-use controls are located close to the operator.
  • Operator controls are color coded and designed for easy identification and operation.

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

  • It reduces the operator’s risk of being crushed under the vehicle should it overturn.
  • In most situations, the ROPS limits the overturn to little more than 90 degrees.
  • When used with a seatbelt, the ROPS is very effective in preventing deaths and serious injuries.
    • Use of the seat belt is recommended when operating with ROPS in the upright position.
ROPS folded at intermediate position ROPS folded at intermediate position
ROPS folded down ROPS folded down

Foldable ROPS and retractable seat belt are standard equipment:

  • Handles on the position pins provide a good grip and make changing the angle of the ROPS easier.
  • The door height of most garages will accommodate the machine with ROPS in the fully raised position.
    • Easy-fold ROPS improves the ability to store the ZTrak™ mower in structures with a lower door opening.
Model Height at top of ROPS in fully raised position
Z515E, Z530R 70.1 in. (178 cm)
Z530R, Z545R 70.7 in. (179.6 cm)
Engine power 25 hp
18.6 kW
Engine model number HTR EFI/ETC
Forward speed 0-9 mph
0-14.5 km/h
Front caster tires 13x6.5-6
Drive tires 23x10.5-12
Seat back height High back with armrests and ComfortGlide™, 22.5 in.
57.1 cm
Width of cut High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm
Mulching system Optional MulchControl™ attachment, 48 in.
122 cm
Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm
Warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Battery
Charger
Power 25 hp
18.6 kW
Model number HTR EFI/ETC
Displacement 44.2 cu in.
724 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt
1.9 L
Type Overhead valve
Battery 12 V
300 CCA
Choke/speed control Separate control levers
Cooling method Air
Fuel tank capacity 4.5 U.S. gal.
17 L
Fuel gauge Electric gauge and fuel level sight line
Dual hydros Tuff Torq TZT7-M with 1-in. (2.5-cm) axles
Hydraulic pumps
Wheel motors
Battery
Charger
Transmission
Forward speed 0-9 mph
0-14.5 km/h
Reverse speed 0-4.5 mph
0-7.2 km/h
Speed and direction control Twin premium levers
Control adjustment 2-height/9-fore-aft, 18 positions
Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster tires 13x6.5-6
Front caster bearings Sealed ball bearings
Drive tires 23x10.5-12
Hour meter Yes
Service interval decal Yes
Storage compartment Yes and covered
Cup holder Yes
Maximum towing capacity 250 lb
113 kg
Seat back height High back with armrests and ComfortGlide, 22.5 in.
57.1 cm
Fore-aft adjustment While seated, 3 in.
7.6 cm
Seat suspension Two springs and ComfortGlide
Type Foot lift
Mower cut height 1-4 in.
2.5-10.2 cm
Cut height increments 0.25 in.
0.64 cm
Preset cut height Yes
Width of cut High capacity mower deck, 48 in.
122 cm
High capacity mower deck, 54 in.
137 cm
High capacity mower deck, 60 in.
152 cm
Type High-capacity side discharge
Mower deck material 9 gauge
0.150 in.
3.8 mm
Mower drive system V-belt
Type Electric, 125 lb-ft
169.5 Nm
Drive V-belt
Wheelbase 49.2 in.
1250 mm
Overall length 81.9 in.
2080 mm
Width without mower 48.7 in.
1237 mm
Width with mower 48 HC: 62.4 in.
1585 mm
54 HC: 68.3 in.
1735 mm
60 HC: 73.5 in.
1867 mm
Width with mower (deflector raised for storage) 48 HC: 53.6 in.
1361 mm
54 HC: 59.6 in.
1514 mm
60 HC: 65.6 in.
1667 mm
Height ROPS in folded position: 49.2 in.
1250 mm
ROPS in raised position: 71.7 in.
1821 mm
Weight With mower and fuel, 48HC, 826 lb
375 kg
With mower and fuel, 54HC, 832 lb
378 kg
With mower and fuel, 60HC, 840 lb
382 kg
Rollover protective structure (ROPS) Yes
Slope operating limit 15 degrees, 10 degrees with an MCS
Operator presence system Yes
Park brake interlock Yes
Operator video Yes
Note 1 Mower wash port makes cleaning the deck easier
Note 2 Flip-up foot platform for easy service access
Note 3 18-position adjustable motion-control levers
Warranty 4 year/500 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Mulching system Optional MulchControl attachment, 54 in.
137 cm
Optional MulchControl kit, 60 in.
152 cm
Rubber floor mat Foot platform and toe board
Sun shade Optional
Mounted sprayer No
Protective cover Yes
Light kit 4-point LED Light kit
Material collection system Power Flow rear bagger, 6.5 bu
230 L
Not available on 60HC
Manufacturing location Greeneville, Tennessee, USA
Date collected 1-Dec-21
View Brochure
*Offers expire 31 March 2026. Subject to approved credit with John Deere Financial, f.s.b. Some exclusions apply. Offer available on in-stock new equipment and in the U.S. only. Prices and savings in U.S. dollars. No cash value. See dealer for full detail.

Additional attachments and options available in-store.

John Deere Rewards discounts can be applied to in-store purchases.

Finance calculator is for estimation only. Taxes, fees, set up and delivery may increase your monthly payment. Same-day pickup not guaranteed for equipment orders.

The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Product features subject to change. Images of options may not accurately represent products purchased. Call your local TriGreen dealership for details.



Additional attachments and options available in-store.

John Deere Rewards discounts can be applied to in-store purchases.

Finance calculator is for estimation only. Taxes, fees, set up and delivery may increase your monthly payment. Same-day pickup not guaranteed for equipment orders.

The engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Product features subject to change. Images of options may not accurately represent products purchased. Call your local TriGreen dealership for details.

Specs
Build Your Own
Financing
Powered by Lapero
